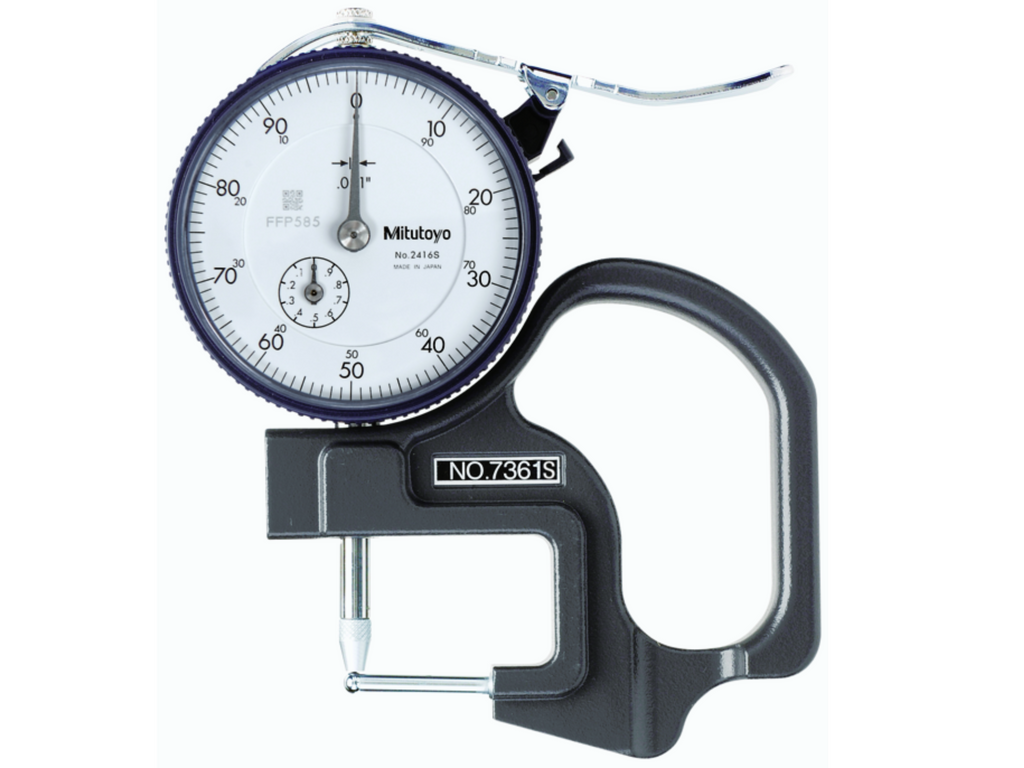

Dial Indicator Thickness Gauge 0-0.04", 0,001", Tube Thickness, 7361S
A Mitutoyo dial-gauge-based instrument designed for quick and efficient measurement of small dimensions. The ball anvil and point contact make this model ideally suited for measuring the wall thickness of tubes. The convenient grip handle, thumb trigger and spring-loaded plunger make the instrument easy to use.

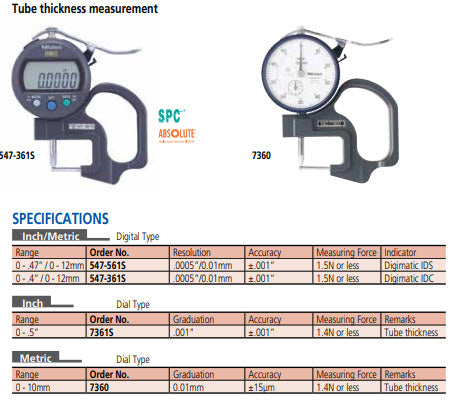

Specification
- Inch-Metric: Inch
- Functions: Tube thicknesses - Minimum inside diameter 3.5 mm
- Range: 0 - 0.05"
- Graduation: 0.001"
- Accuracy: ±0,001"
- Parallelism: 5 µm
- Max. measuring depth: 0.8"
- Mass: 200 g
- Contact point: Thread # 4-48UNF
All images are for representation only.
No technical information is currently available.
No application information is currently available.
