Dial Snap Meter 25-50mm 523-122

Name: Dial Snap Meter 25-50mm 523-122
Brand: Mitutoyo
SKU: 523-122
Price: 511.0 GBP
Availability: InStock

MitutoyoSKU: 523-122

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£511.00 £700.00

Quantity:

All prices exclude VAT, which will be added at checkout.

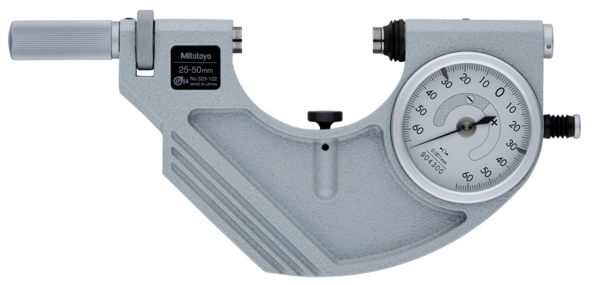

A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog

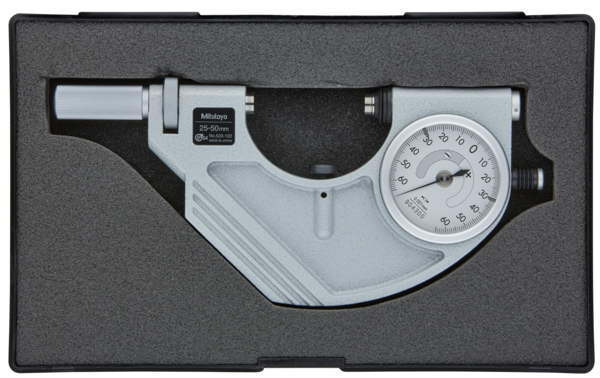

Delivered:	Including box, workpiece rest, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0.001 mm
Indicating range:	±0.06 mm
Anvil retracting stroke:	2 mm
Accuracy dial comparator:	1 μm
Repeatability:	0.4 µm
Flatness:	0,3 μm
Parallelism:	0,6 μm
Measuring face:	Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:	ø10,8 mm
Measuring force:	5 - 10 N
Delivered:	Including box, workpiece rest
Mass:	840 g
