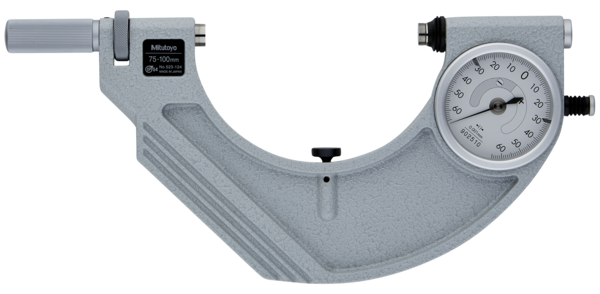

Name: Dial Snap Meter 75-100mm 523-124
Brand: Mitutoyo
SKU: 523-124
Price: 618.0 GBP
Availability: InStock

Optional Services

UKAS Accredited Calibration +£55.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Add UKAS calibration of setting standard Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MMi-8 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£492.00 Part number: 516-106-10 → View product

Optical Parallels Set, Metric 0-25mm 157-903 +£347.00 Part number: 157-903 → View product

Mitutoyo 04AZA124 Workpiece Stopper 510 style Micrometer 23mm +£12.00 Part number: 04AZA124 → View product

Mitutoyo 04AZA125 Workpiece Stopper Indicating Micrometer 20.5mm +£12.00 Part number: 04AZA125 → View product

Mitutoyo 04AZA126 Workpiece Stopper Indicating Micrometer 15mm +£12.00 Part number: 04AZA126 → View product

Digital/Analog:	Analog

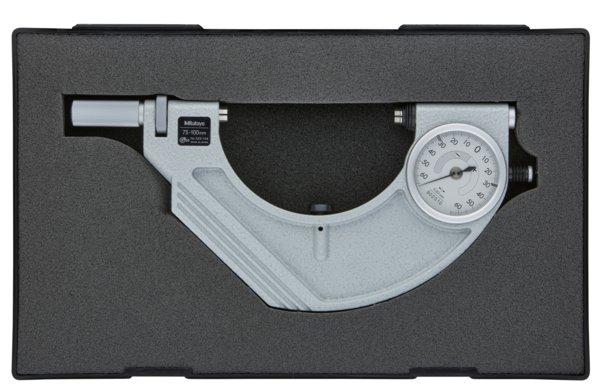

Delivered:	Including box, workpiece rest, setting standard
Inch-Metric:	Metric
Range:	75 - 100 mm
Graduation:	0.001 mm
Indicating range:	±0.06 mm
Anvil retracting stroke:	2 mm
Accuracy dial comparator:	1 ?m
Repeatability:	0.4 µm
Flatness:	0,3 ?m
Parallelism:	1 ?m
Measuring face:	Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:	ø10,8 mm
Measuring force:	5 - 10 N
Delivered:	Including box, workpiece rest
Mass:	1080 g
