Dial Snap Meter 3-4" 523-134

Name: Dial Snap Meter 3-4" 523-134
Brand: Mitutoyo
SKU: 523-134
Price: 618.0 GBP
Availability: InStock

MitutoyoSKU: 523-134

List price: £846.00 Offer price: £618.00 Excluding VAT

Quantity:

Optional Services

Add UKAS calibration of setting standard Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

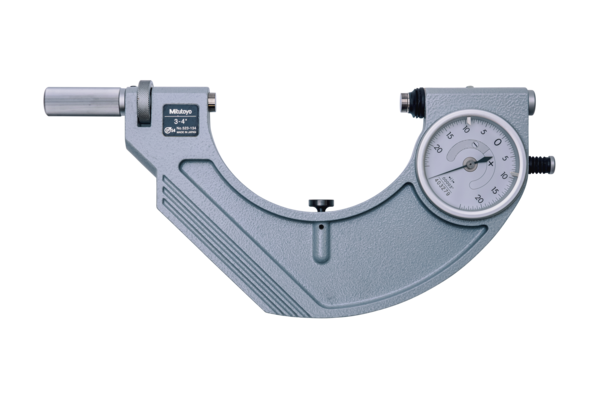

A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Dial Snap Meter 3-4" 523-134 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog

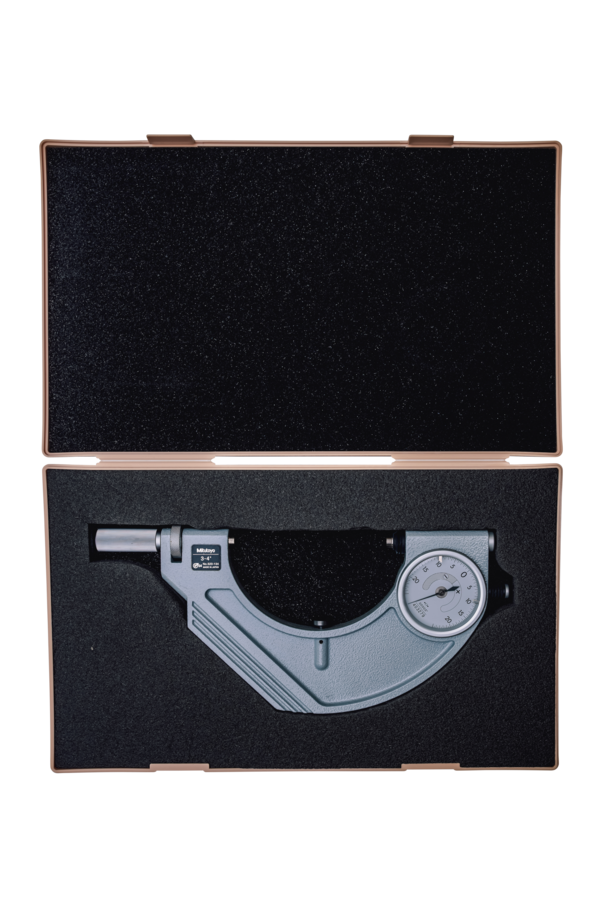

Delivered:	Including box, workpiece rest, setting standard
Inch-Metric:	Inch
Range:	3 - 4 "
Graduation:	0,00005"
Indicating range:	±0.002"
Anvil retracting stroke:	2 mm
Accuracy dial comparator:	1 ?m
Repeatability:	0.00002"
Flatness:	0,000012"
Parallelism:	0,00004"
Measuring face:	Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:	ø10,8 mm
Measuring force:	5 - 10 N
Delivered:	Including box, workpiece rest
Mass:	1080 g
