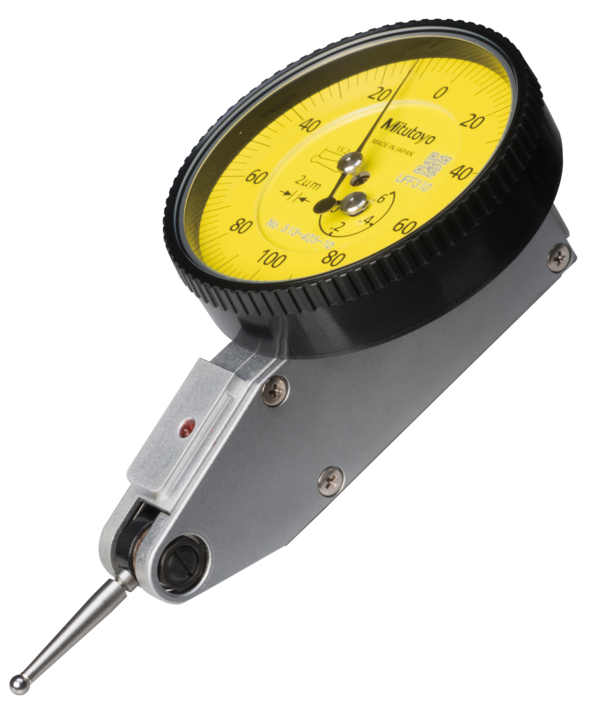

Dial Test Indicator, Horizontal Type 0.6mm, 0.002mm, 8mm Stem 513-425-10A

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Horizontal Type 0.6mm, 0.002mm, 8mm Stem 513-425-10A

Name: Dial Test Indicator, Horizontal Type 0.6mm, 0.002mm, 8mm Stem 513-425-10A
Brand: Mitutoyo
SKU: 513-425-10A
Price: 109.2 GBP
Availability: InStock

MitutoyoSKU: 513-425-10A

All prices exclude VAT, which will be added at checkout.

Price:

£109.20 £156.00

Quantity:

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	513-425-10A
Measuring Ranges	0.6mm
Resolution	0.002mm
Graduation	.002mm
Accuracy	.006mm
Unit of Measurement	Metric
Measuring Force	≤0.4N
Type	Horizontal
Length	22.2mm
Repeatability	.001mm
Dial Reading	0-100-0
Hysteresis	.004mm
Stem	4mm & 8mm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	Plus set
Delivered:	In a box with stem ø8/4 mm, stylus ø1/2/3 mm
Range:	0.6 mm
Graduation:	0.002 mm
MPE any 10 scale divisions:	2 µm
MPE any 1/2 revolution:	3 µm
MPE any 1 revolution:	5 µm
MPE measuring range:	7 µm
H MPE (Hysteresis):	4 µm
R MPE (Repeatability):	1 µm
Carbide stylus tip ø2 mm No.:	103011
Mass:	45 g
Contact point:	Thread M 1.7 x 0.35
