Dial Test Indicator, Horizontal Type 0.03", 0.0005", 9.52mm Stem 513-402-10E

MitutoyoSKU: 513-402-10E
List price: £117.00 Offer price: £85.00 Excluding VAT

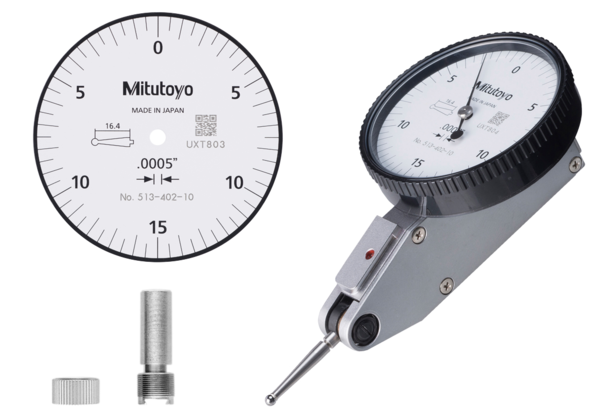

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:
In a box with stem ø3/8" (9,52 mm), stylus ø0,079"
Range:
0,03 "
Dial reading:
0-15-0
Graduation:
0,0005"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0002"
MPE first one revolution:
±0,0005"
Type:
Basic set
Measuring force:
0,01-0,3 N
Carbide stylus tip ø2 mm No.:
133195
Mass:
40 g
Contact point:
Thread M 1.7 x 0.35

No technical information is currently available.

No application information is currently available.
