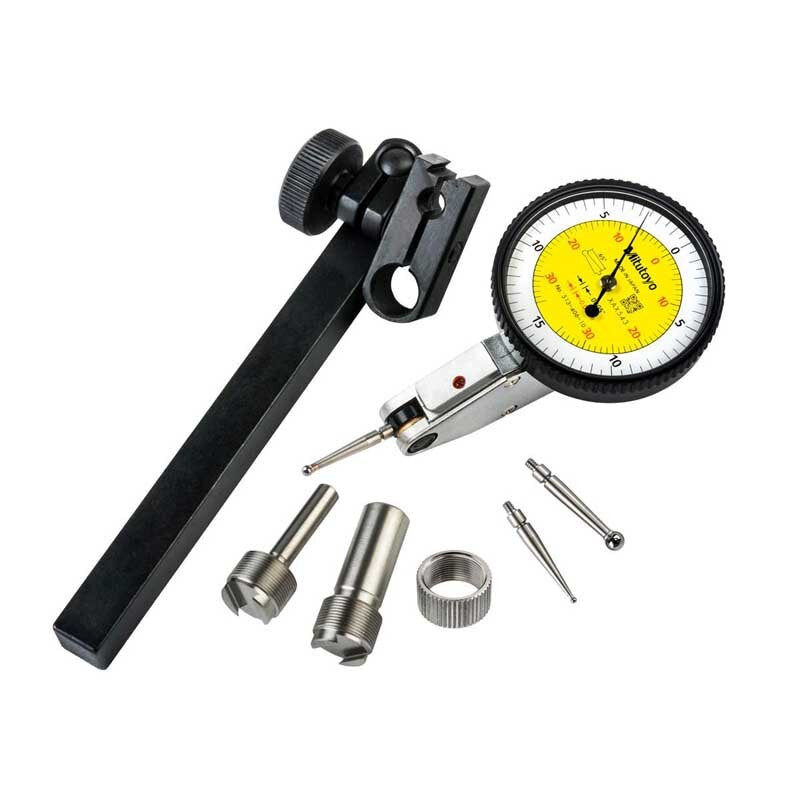

Dial Test Indicator, Horizontal Type 0.03"/0.7mm, 0.0005"/0.01mm, 9.52mm Stem 513-406-10E

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Horizontal Type 0.03"/0.7mm, 0.0005"/0.01mm, 9.52mm Stem 513-406-10E

Name: Dial Test Indicator, Horizontal Type 0.03"/0.7mm, 0.0005"/0.01mm, 9.52mm Stem 513-406-10E
Brand: Mitutoyo
SKU: 513-406-10E
Price: 101.0 GBP
Availability: InStock

MitutoyoSKU: 513-406-10E

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£101.00 £138.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Product Information
Part Number	513-406-10E
Measuring Ranges	0.03"
Resolution	0.0005"/0.01mm
Graduation	.0005"/.01mm
Accuracy	.0005"
Unit of Measurement	Metric Inch
Measuring Force	≤0.3N
Type	Horizontal
Length	.65"
Repeatability	±.0002"
Dial Reading	0-15-0/0-35-0
Hysteresis	.0002"
Stem	4mm & 8mm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Inch/Metric
Delivered:	In a box with stem ø3/8" (9,52 mm), stylus ø0,079"
Range:	0.7 mm
Range:	0,03 "
Dial reading:	0-15-0/0-35-0
Graduation:	0.01 mm
Graduation:	0,0005"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,0005"
Type:	Basic set
Measuring force:	0,01-0,3 N
Mass:	58 g
Contact point:	Thread M 1.7 x 0.35
