Dial Test Indicator, Horizontal Type 0.03", 0.0005", 4/9.52mm Stem 513-412-10T

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Horizontal Type 0.03", 0.0005", 4/9.52mm Stem 513-412-10T

Name: Dial Test Indicator, Horizontal Type 0.03", 0.0005", 4/9.52mm Stem 513-412-10T
Brand: Mitutoyo
SKU: 513-412-10T
Price: 121.1 GBP
Availability: InStock

MitutoyoSKU: 513-412-10T

All prices exclude VAT, which will be added at checkout.

Price:

£121.10 £173.00

Quantity:

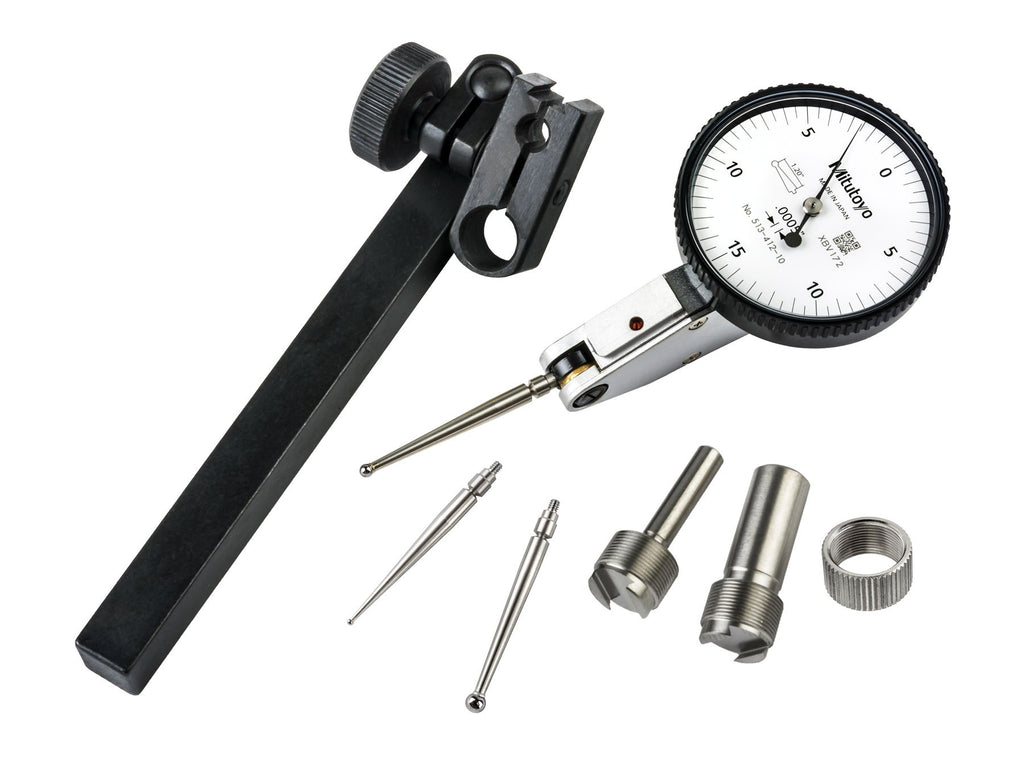

A Mitutoyo versatile long stylus, anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	513-412-10T
Measuring Ranges	0.03"
Resolution	0.0005"
Graduation	.0005"
Accuracy	.0005"
Unit of Measurement	Inch
Measuring Force	≤0.2N
Type	Horizontal
Length	1.2"
Repeatability	±.0002"
Dial Reading	0-15-0
Hysteresis	.0002"
Stem	.157"
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Inch

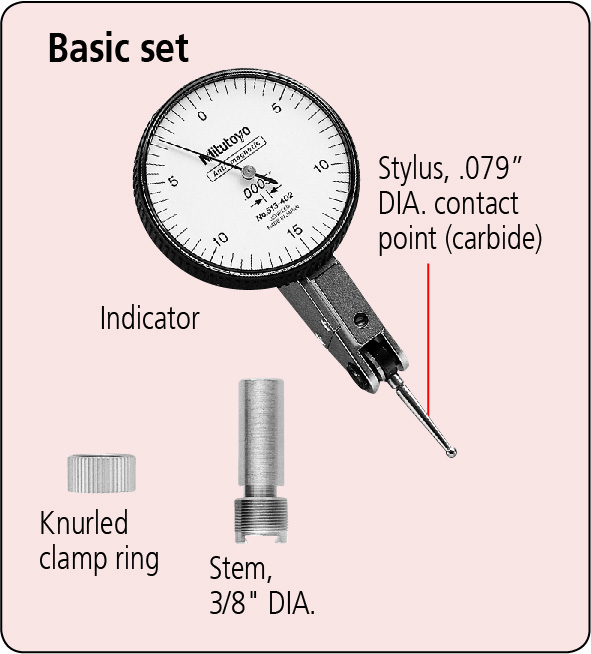

Delivered:	In a box with stem ø3/8" (9,52 mm) / 0,157" (4 mm), stylus ø0,039"/0,079"/0,118", swivel clamp / holding bar
Range:	0,03 "
Dial reading:	0-15-0
Graduation:	0,0005"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,0005"
Type:	Full set
Measuring force:	0,01-0,2 N
Mass:	58 g
Contact point:	Thread M 1.7 x 0.35
