Dial Test Indicator, Horizontal Type 0.8mm, 0.01mm, with Magnetic Stand 513-908-10E

MitutoyoSKU: 513-908-10E
List price: £188.00 Offer price: £137.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

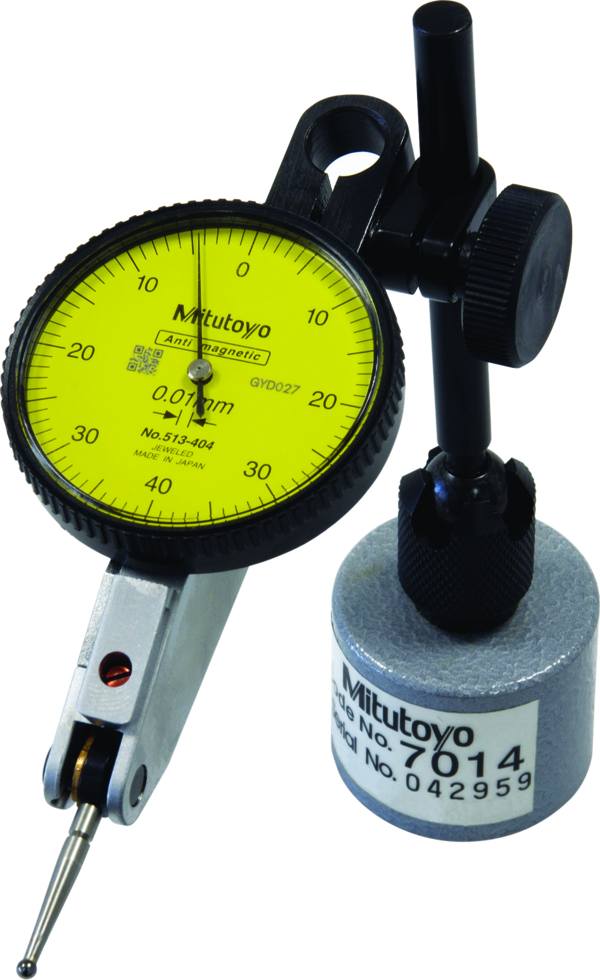

This is a Dial Test Indicator (Lever Type) including mini magnet stand. It offers you the following benefits:
  • It contains various accessories including a mini magnet stand, a swivel clamp and a stem with a knurled clamp ring.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Delivered:

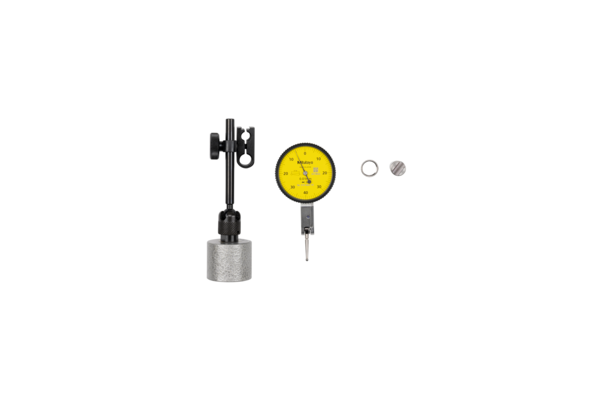

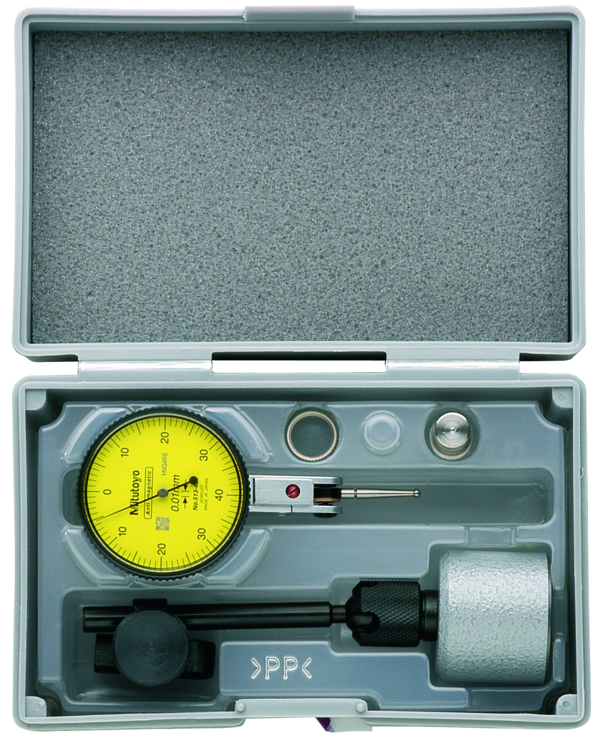

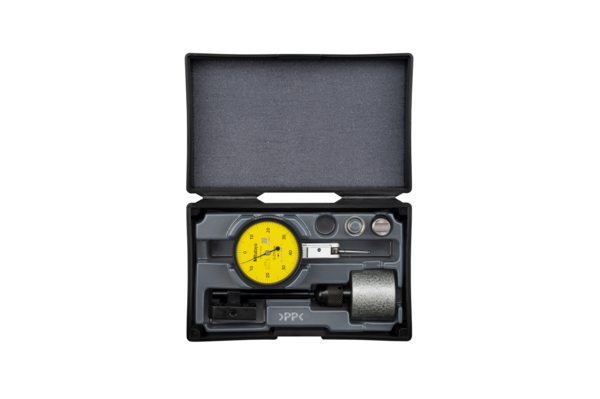

In a box with stem ø8 mm, stylus ø2 mm, Mini Magnet Stand
Content of Set:
513-404-10E: Lever Indicator
7014-10: Mini Magnet Stand
902804: Stem with Knurled Clamp Ring
Range:
0.8 mm
Dial reading:
0-40-0
Graduation:
0.01 mm
MPE any 10 scale divisions:
5 µm
MPE any 1/2
revolution:
6 µm
MPE measuring range:
8 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Type:
Basic set - with magnet stand
Contact point:
Thread M 1.7 x 0.35

No technical information is currently available.

No application information is currently available.
