Dial Test Indicator, Pocket Type 0.8mm, 0.01mm, D=8 mm Stem 513-517T

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Pocket Type 0.8mm, 0.01mm, D=8 mm Stem 513-517T

Name: Dial Test Indicator, Pocket Type 0.8mm, 0.01mm, D=8 mm Stem 513-517T
Brand: Mitutoyo
SKU: 513-517T
Price: 104.0 GBP
Availability: InStock

MitutoyoSKU: 513-517T

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£104.00 £143.00

Quantity:

All prices exclude VAT, which will be added at checkout.

A Mitutoyo versatile lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications, especially where the slim round body (Ø 9.5mm) is an advantage for reaching locations with restricted access. The measuring direction is easily reversed and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Product Information
Part Number	513-517T
Measuring Ranges	0.5mm
Graduation	.01mm
Accuracy	0.10mm
Unit of Measurement	Metric
Measuring Force	≤0.3N
Length	36.8mm
Repeatability	.003mm
Dial Reading	0-25-0
Hysteresis	.003mm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	Full set

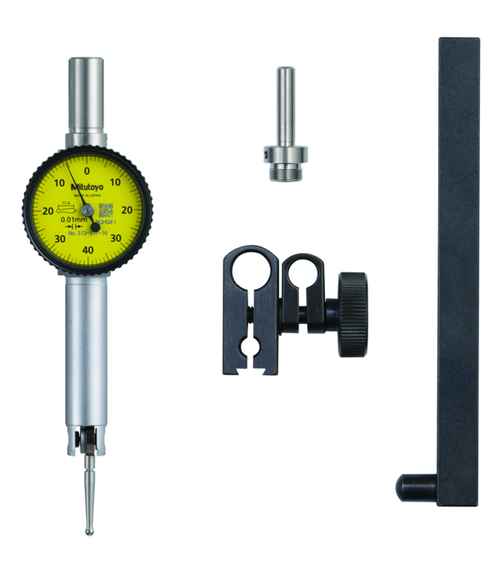

Delivered:	In a box with stem ø4/8 mm, stylus ø2 mm, swivel clamp / holding bar (2 pcs.)
Range:	0.8 mm
Dial reading:	0-40-0
Graduation:	0.01 mm
H MPE (Hysteresis):	3 mm
MPE any 10 scale divisions:	5 µm
MPE any 1/2 revolution:	6 µm
MPE measuring range:	8 µm
R MPE (Repeatability):	3 µm
Measuring force:	≤ 0,3 N
Carbide stylus tip ø2 mm No.:	103006
Contact point:	Thread M 1.7 x 0.35
