MitutoyoSKU: 513-455-10T
List price: £188.00 Offer price: £137.00 Excluding VAT

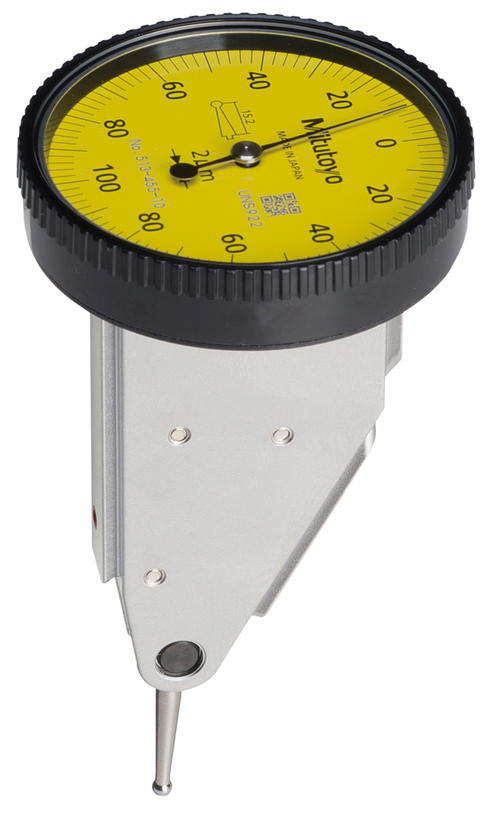

A versatile anti-magnetic type Mitutoyo lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Type Full Set
Delivered:

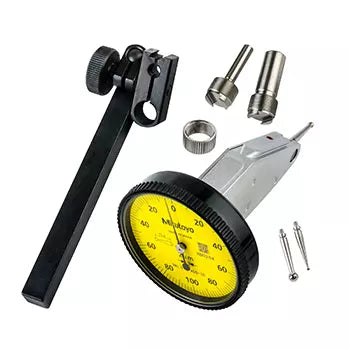

  • Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar
Range:
0.2 mm
Dial reading:
0-100-0
Graduation:
0.002 mm
MPE any 10 scale divisions:
2 µm
MPE any 1/2
revolution:
3 µm
MPE measuring range:
3 µm
H MPE
(Hysteresis):
2 µm
R MPE
(Repeatability):
1 µm
Carbide stylus tip ø2 mm No.:
103011
Mass:
46 g
Contact point:
Thread M 1.7 x 0.35

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T Click to open the PDF document
