Dial Test Indicator, Universal Type 513-302G reading in .0005" x .03"

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Universal Type 513-302G reading in .0005" x .03"

Name: Dial Test Indicator, Universal Type 513-302G reading in .0005" x .03"
Brand: Mitutoyo
SKU: 513-302G
Price: 310.0 GBP
Availability: InStock

MitutoyoSKU: 513-302G

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£310.00 £424.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Mitutoyo; Lever-Type Dial Indicator

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Product Information
Part Number	513-302G
Measuring Ranges	0.03"
Resolution	0.0005"
Graduation	.0005"
Accuracy	.0003"
Unit of Measurement	Inch
Measuring Force	≤0.3N
Repeatability	±0,0003"
Dial Reading	0-15-0
Dial Face Size Ø	40mm
Hysteresis	0.0003"
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Inch
Type:	Full set

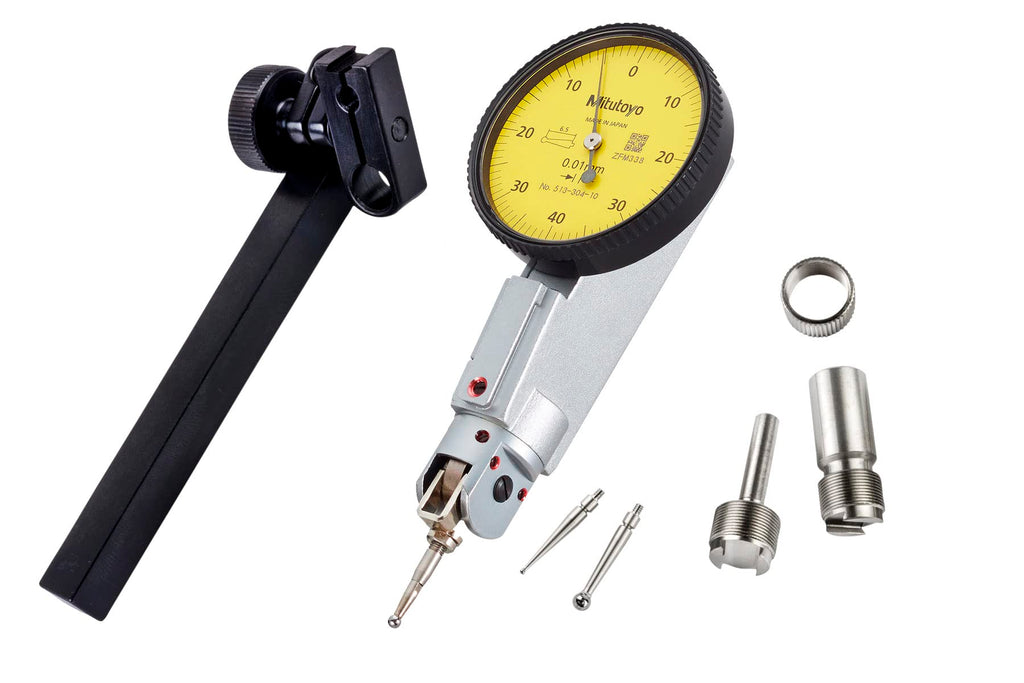

Delivered:	In a box with stem ø3/8" (9,52 mm)/0,157" (4 mm), stylus ø0,039"/0,079" (2 pcs,)/0,118", swivel clamp and holding bar, spanner
Range:	0,03 "
Dial reading:	0-15-0
Graduation:	0,0005"
H MPE (Hysteresis):	0,0003"
R MPE (Repeatability):	±0,0003"
MPE first one revolution:	±0,0005"
Measuring force:	0,01-0,3 N
Mass:	71 g
Contact point:	Thread M 1.4 x 0.3
