MitutoyoSKU: 513-304-10T
List price: £458.00 Offer price: £334.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

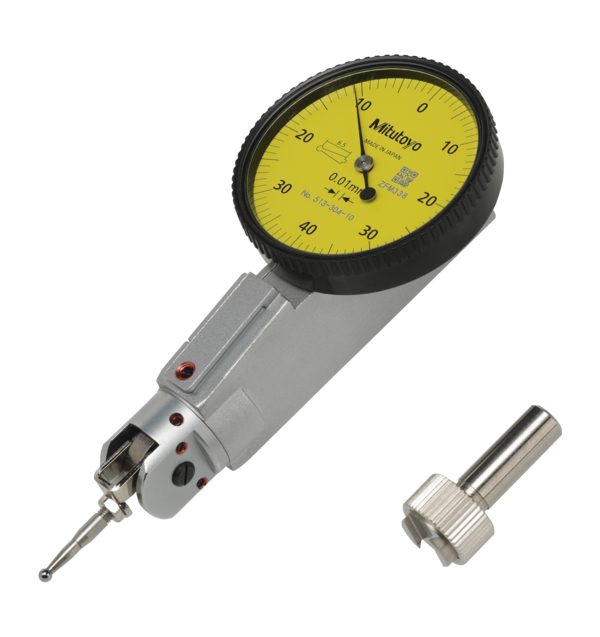

Mitutoyo; Lever-Type Dial Indicator

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:
  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal.
Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Type:
Full set
Delivered:

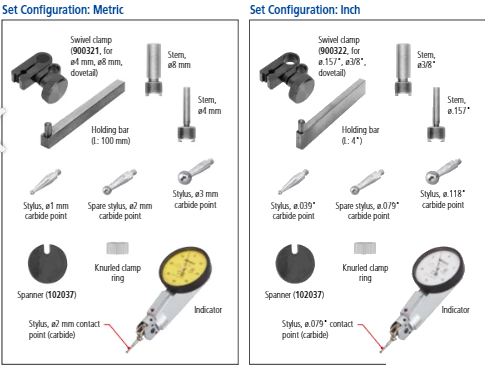

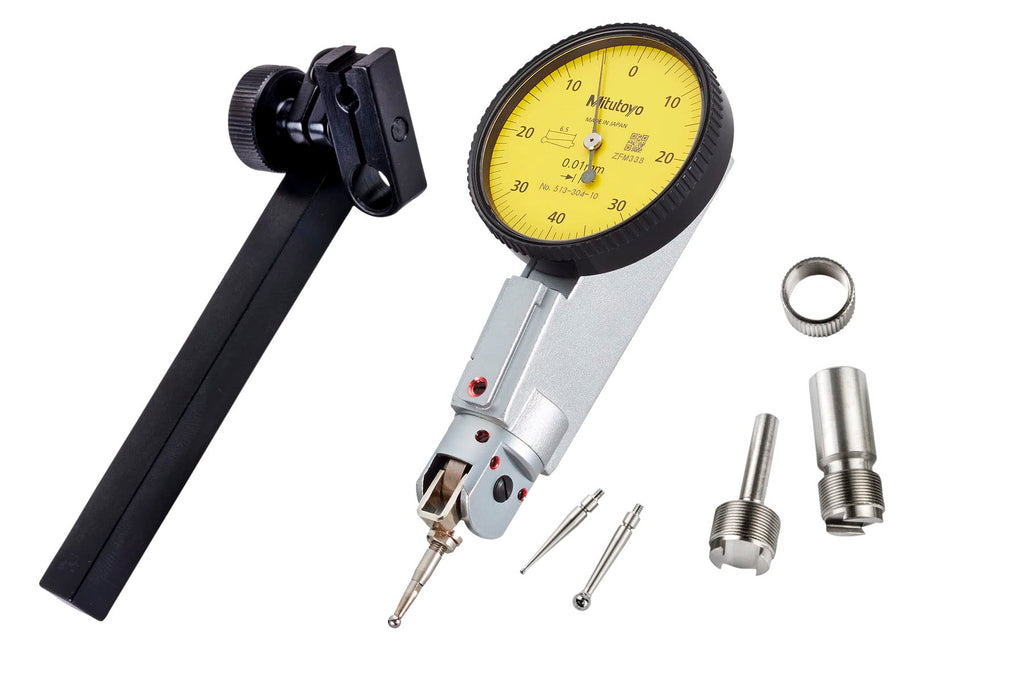

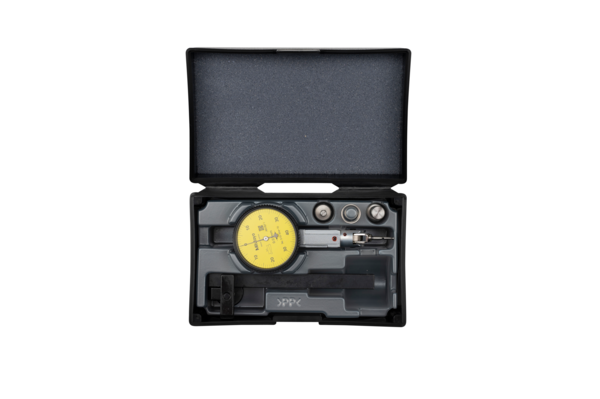

In a box with stem ø8/4 mm, stylus ø1/2 (2 pcs.)/3 mm, swivel clamp and holding bar, spanner
Range:
0.8 - 0.8 mm
Dial reading:
0-40-0
Graduation:
0.01 mm
MPE any 10 scale divisions:
5 µm
MPE any 1/2
revolution:
6 µm
MPE measuring range:
8 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Measuring force:
0,01-0,3 N
Carbide stylus tip ø2 mm No.:
102825
Mass:
80 g
Contact point:
Thread M 1.4 x 0.3

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Dial Test Indicator, Universal Type 0.8mm, 0.01mm, Full Set, with Bracket 513-304-10T Click to open the PDF document
