PDF Brochure

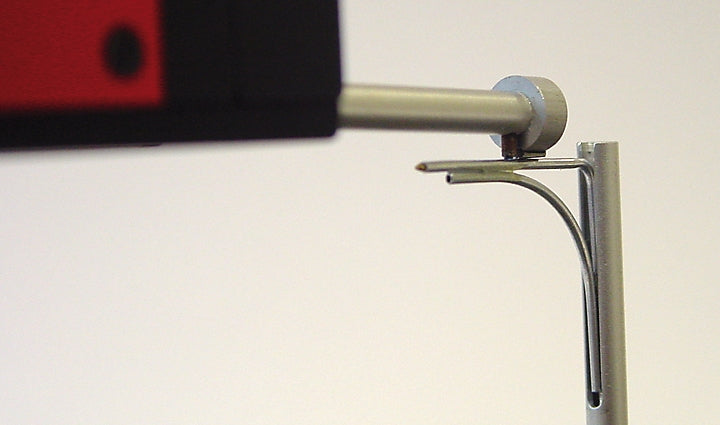

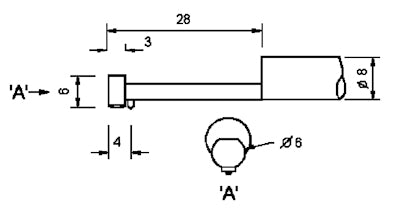

- knife-shaped tracer, width 0.6 mm, for small shafts and blades, to measure the cutting edge of a cutting tool, thin shafts, steel wires and edges
- radius of the tip: standard 5 ?m
- radius of the shoe: r = 25 mm
- do not use with the advance device down
- the use of a stand for the advance device is strongly advised
-

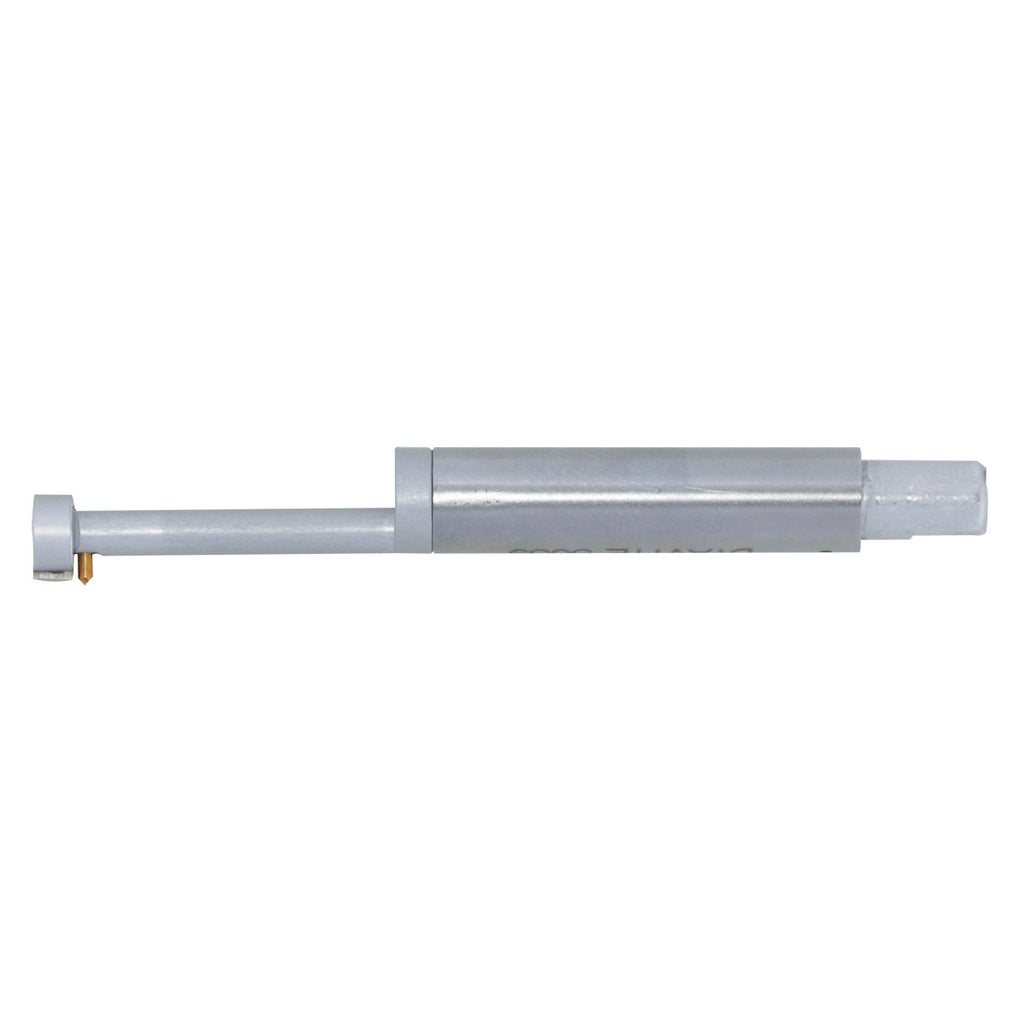

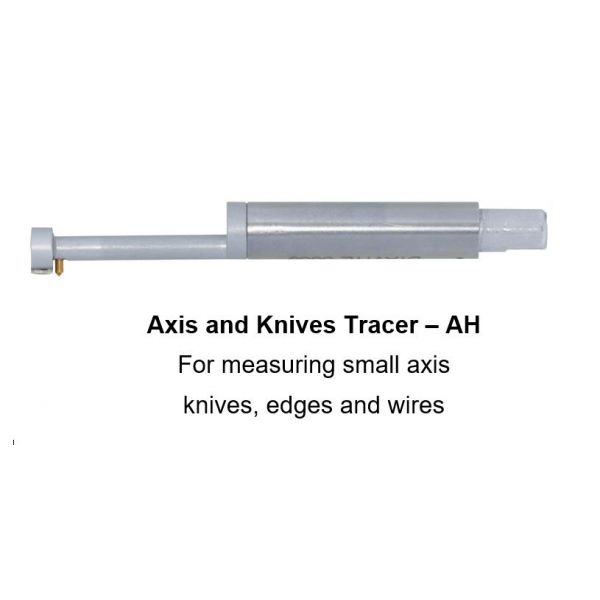

Model AH Tracer AH Axis and Cutting Edge Tracer with Diamond 2µm radius Detector Conical taper angle 60º Stylus tip radius 2µm Diamond Additional Details Skid=Yes|
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
