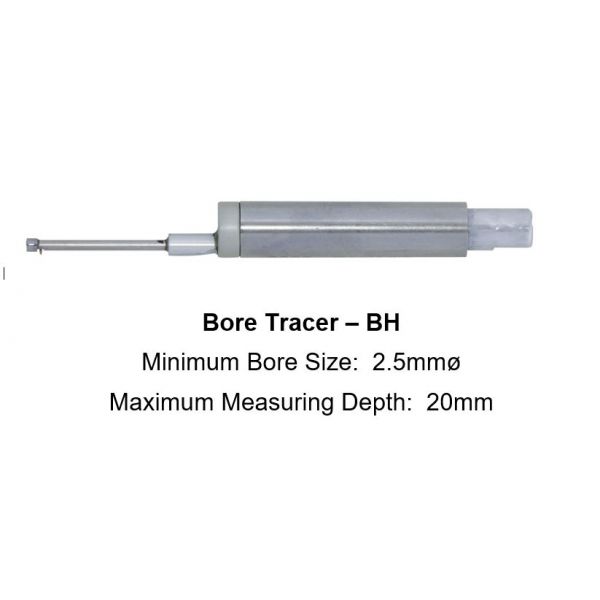

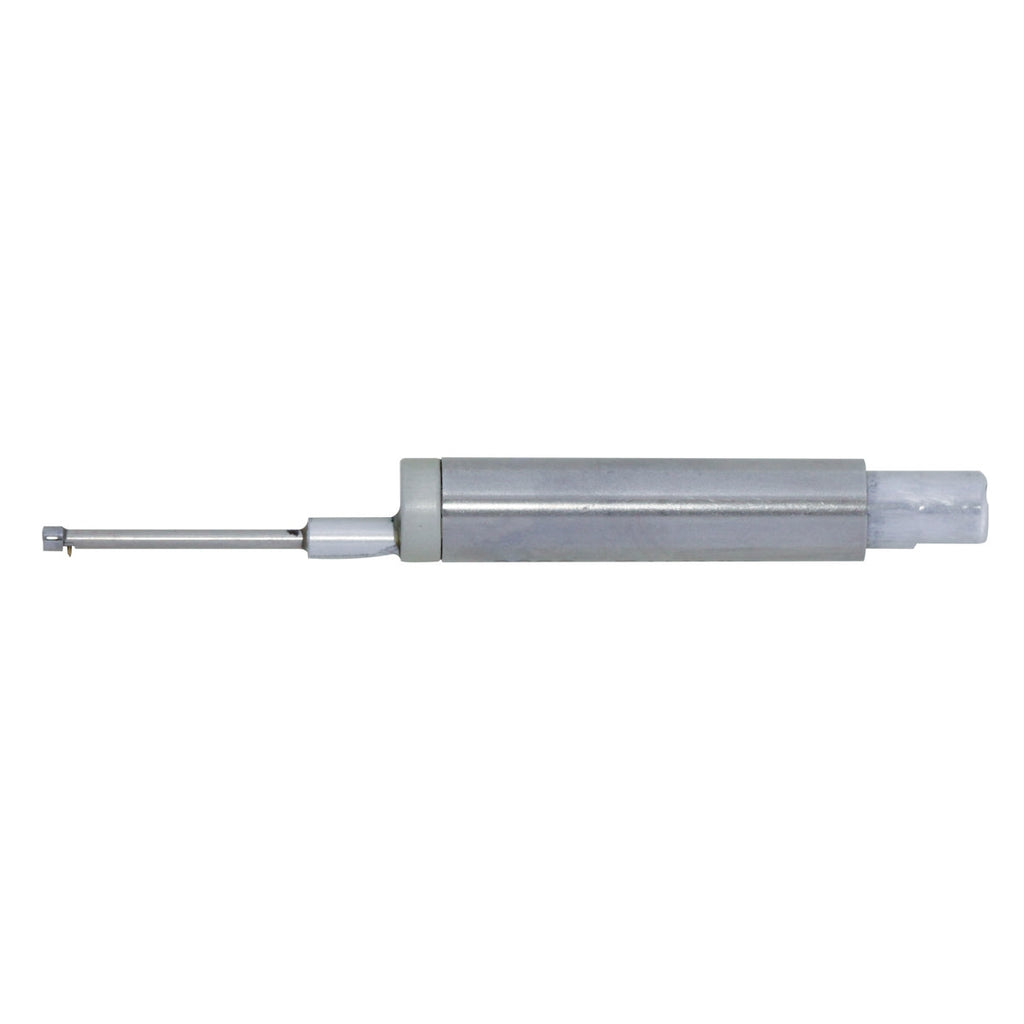

Diavite BH-00/00/60/2 Small Bore Tracer with 2µm Radius Diamond Stylus Maximum Depth 20mm Minimum Bore Diameter 2.5mm

PDF Brochure

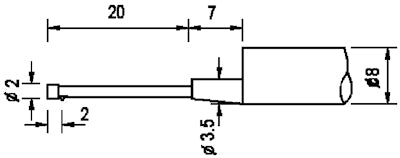

• probe for drilling from Ø 2.5 mm
• maximum depth: 20 mm
• diamond offset ~ soleplate: 2 mm
• probe end distance ~ diamond tip: 2.5 mm
• radius of the tip: 2 µm / 60°
• radius of skid: r = 10 mm
• usable in all positions
• the use of a stand for the advance device is strongly advised

• Model	BH Small Bore Tracer
  Detector Conical taper angle	60º
  Stylus tip radius	2µm Diamond
  Additional Details	Skid=Yes| Measuring Depth=20mm| Minimum Diameter=2.5mm|
