PDF Brochure
- only for use with VHF feed system

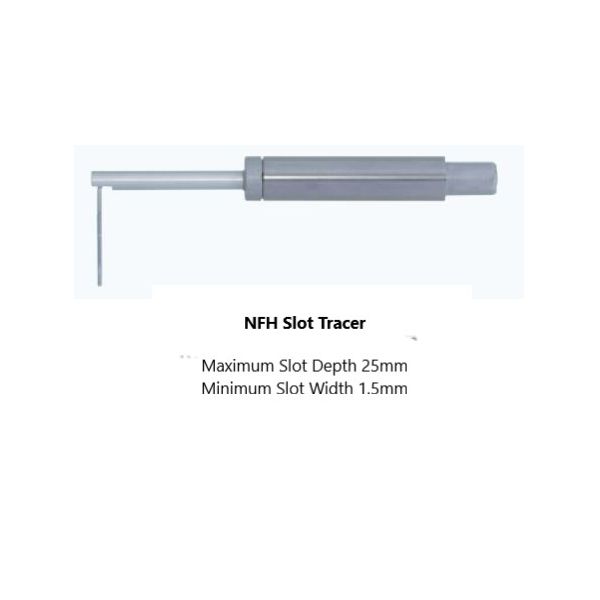

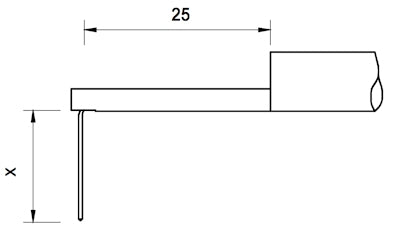

- maximum depths of grooves: 25 mm
- groove width min: 1.5 mm
- radius of the tip: standard 5 ?m
- also available with 2 ?m diamond
- do not use with the advance device down
- the use of a stand for the advance device is necessary
-

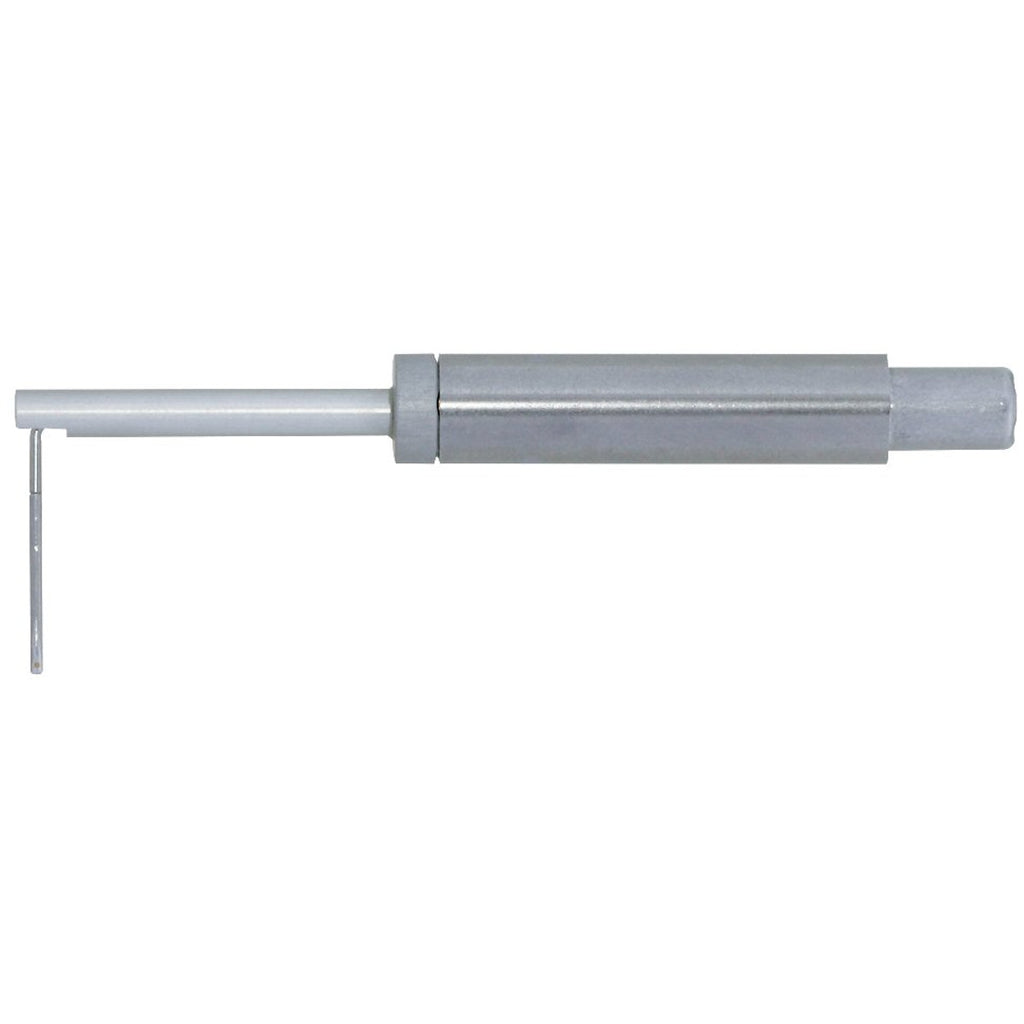

Model nivelSWISS 50-W Detector Conical taper angle 90º Stylus tip radius 5µm Additional Details Skid=No| Measuring Depth=25mm| Minimum Slot Width=1.5mm|
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
