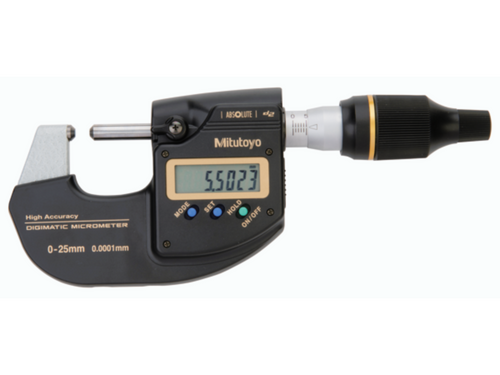

Mitutoyo Digimatic High Accuracy Digital Micrometer 0-25mm(0-1"), With Output 293-130-10

MitutoyoSKU: 293-130-10
List price: £1,950.00 Offer price: £1,424.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This Micrometer enables 0.1 ?m resolution measurements and is
ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis).
The Absolute High-Accuracy Micrometer offers the following benefits:
  • It delivers higher accuracy without sacrificing operability, by using Mitutoyo‘s innovative 0.1 ?m resolution ABS (absolute) rotary
    sensor and high accuracy screw machining technology which
    reduces instrumental error to just 0.5 ?m.
  • Its highly rigid frame and high-performance constant-force
    mechanism (7-9 N) enable more stable measurement.
Specification
Delivered:
Including wooden box, spanner 200877, screwdriver 04AAB985, CR2032 battery, cleaning paper, thermally insulating cover 04AAB969B, certificate of inspection
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish, Ø 3.2 mm
Measuring spindle:
With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring force:
7 - 9 N
Power supply:
1 lithium battery CR-2032
Battery life:
Approx. 2 years
ON/OFF:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
PRESET:
Yes
Resolution switching:
Yes


No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Mitutoyo Digimatic High Accuracy Digital Micrometer 0-25mm(0-1"), With Output 293-130-10 Click to open the PDF document
Product Document 2 Mitutoyo Digimatic High Accuracy Digital Micrometer 0-25mm(0-1"), With Output 293-130-10 Click to open the PDF document
