Name: Mitutoyo Digital 3 Flute V-Anvil Micrometer 0,4-1", with Groove 314-352-30
Brand: Mitutoyo
SKU: 314-352-30
Price: 639.0 GBP
Availability: InStock

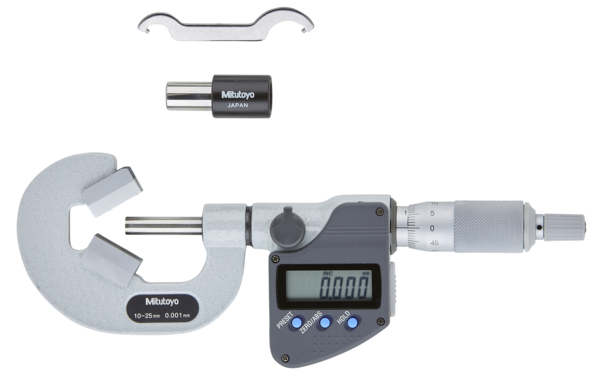

Mitutoyo Digital 3 Flute V-Anvil Micrometer 0,4-1", with Groove 314-352-30

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0,4 - 1 "10.16-25.4mm
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0002"/.005mm
Anvil:	With groove
Display:	LCD, character height 7.5 mm
Measuring face:	Prism angle 60°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Setting standard:	167-338 ø 0.4"
Delivered:	Including box, setting standard, key, 1 battery
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	410 g

Range: 10-25mm (0.4-1″)
Resolution: 0.001mm (0.00005″)
Accuracy: ± 0.004mm (0.0002″)
Flatness: 0.003mm (0.000012″) Spindle, 0.001mm (0.00004″) Anvil
Measuring surfaces: Prism angle 60º
Setting Standard: 167-338 Diameter 10mm (0.4″)
Measuring Force: 5-10N
Ratchet stop for constant measuring force
Thimble and Sleeve scale
With spindle lock: 6.35 mm diameter, spindle pitch 0.75 mm
SPC Data Output
Hold function

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital 3 Flute V-Anvil Micrometer 0,4-1", with Groove 314-352-30 Click to open the PDF document
