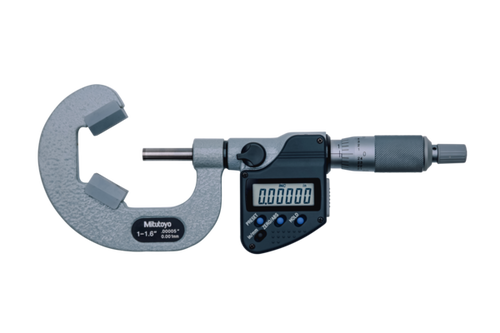

Mitutoyo Digital 3 Flute V-Anvil Micrometer 1-1,6" 314-353-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital 3 Flute V-Anvil Micrometer 1-1,6" 314-353-30

Name: Mitutoyo Digital 3 Flute V-Anvil Micrometer 1-1,6" 314-353-30
Brand: Mitutoyo
SKU: 314-353-30
Price: 630.7 GBP
Availability: InStock

MitutoyoSKU: 314-353-30

All prices exclude VAT, which will be added at checkout.

Price:

£630.70 £901.00

Quantity:

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Specification

Digital/Analog:	Digital

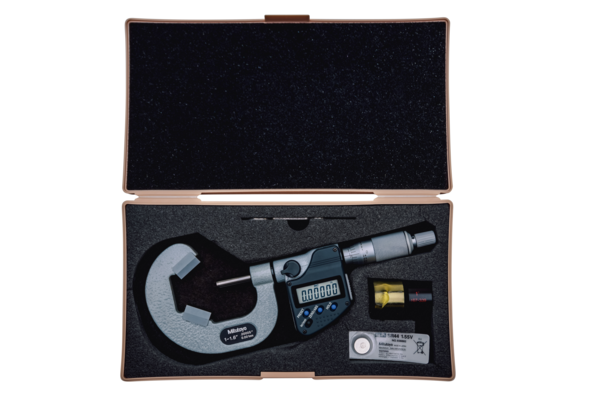

Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	1 - 1,6 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,00025"
Anvil:	Without groove
Display:	LCD, character height 7.5 mm
Measuring face:	Prism angle 60°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Setting standard:	167-339 ø 1"
Delivered:	Including box, setting standard, key, 1 battery
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	465 g

Product Information
Part Number	314-353-30
Measuring Ranges	1-1.6"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
Measuring Force	5-10N
Type	V-Anvil
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo
