Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm 314-262-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm 314-262-30

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm 314-262-30

MitutoyoSKU: 314-262-30
List price: £878.00 Offer price: £641.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
UKAS Calibration of Setting Disc
£25.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:
  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Features

Digital/Analog:
Digital
Delivered:

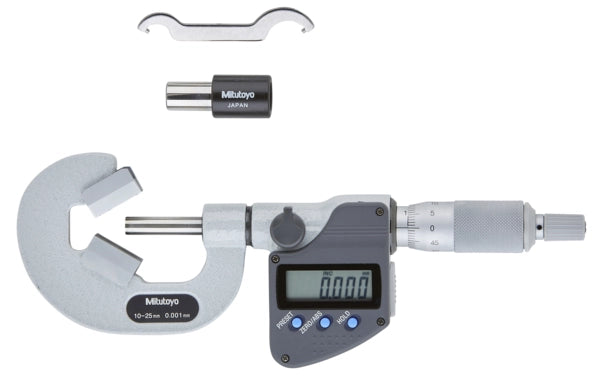

Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Metric
Range:
10 - 25 mm
Digital step:
0,001 mm
Max.
Permissible Error
J MPE:
±4 µm
Anvil:
Without groove
Display:
LCD, character height 7.5 mm
Measuring face:
Prism angle 60°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Setting standard:
167-328 ø 10 mm
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
410 g

No technical information is currently available.

No application information is currently available.
