Mitutoyo Digital 3 Flute V-Anvil Micrometer 25-40mm 314-253-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital 3 Flute V-Anvil Micrometer 25-40mm 314-253-30

Name: Mitutoyo Digital 3 Flute V-Anvil Micrometer 25-40mm 314-253-30
Brand: Mitutoyo
SKU: 314-253-30
Price: 706.0 GBP
Availability: InStock

MitutoyoSKU: 314-253-30

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£706.00 £961.00

Quantity:

All prices exclude VAT, which will be added at checkout.

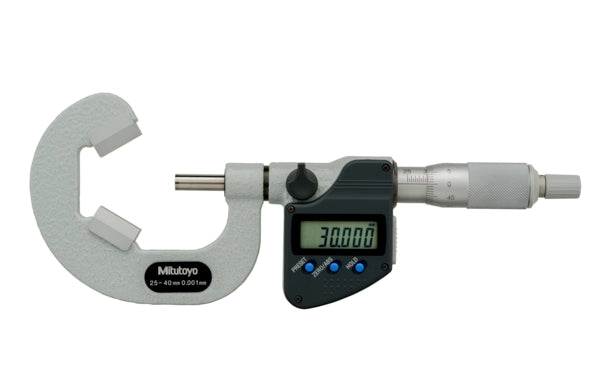

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Features

Digital/Analog:	Digital

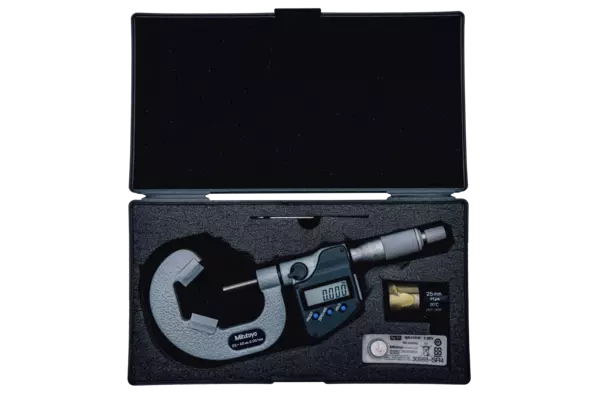

Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Metric
Range:	25 - 40 mm
Digital step:	0,001 mm
Max. Permissible Error J MPE:	±5 µm
Anvil:	Without groove
Display:	LCD, character height 7.5 mm
Measuring face:	Prism angle 60°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Setting standard:	167-329 ø 25 mm
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	465 g

Product Information
Part Number	314-253-30
Measuring Ranges	25-40mm
Unit of Measurement	Metric
Type	V-Anvil
