Digital Precision Micrometer 0815

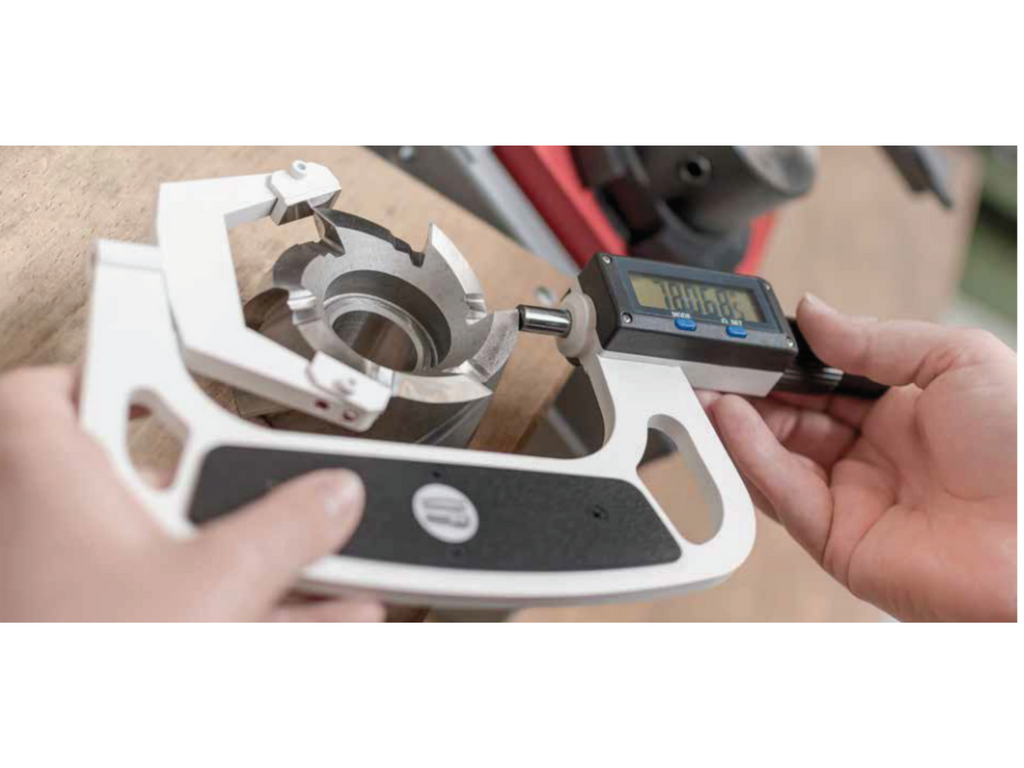

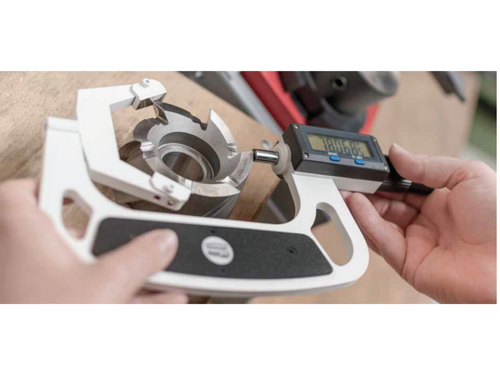

Digital micrometer 0815 to measure workpieces having odd-numbered slots

View Product Data Sheet

• For 3- and 9-slotted workpieces and tools
• Error limits according DIN 863
• Linear measuring system, directly within Abbe' measuring axis
• (Non-rotating) Floating spindle for high repeat accuracy, 2 mm pitch
• Switchable resolution 0,5 µm, 1 µm & 10 µm
• Protection class IP65
• Inch conversion metric mm / inch
• Interface Proximity (Sylvac) for data transfer to measuring computer, wireless or cable
• Input and savin of PRESET and tolerance values
• Carbide measuring faces, as an option made from CBN to ensure great stability
• Min. / Max-value memory

Technical Data

• Switchable resolution 10 µm, 1 µm, 0,1 µm
• Spindle pitch 2,0 mm
• spindel type non-rotating
• Measuring force by ratchet approx. 7 N
• Measuring surface diameter 8 mm
• Repeatability 0,5 µm
