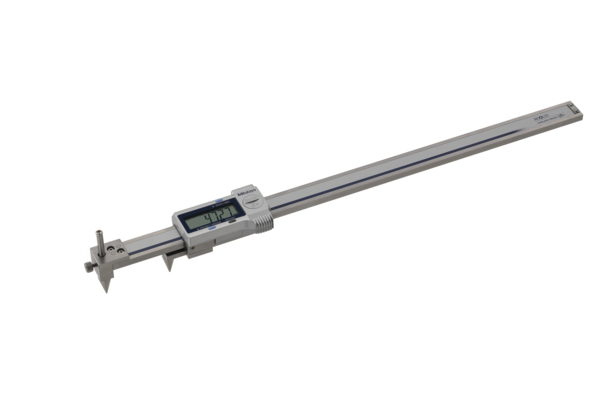

Mitutoyo Digital ABS Back-Jaw Caliper, IP67 10,1-300mm, Center/Center 573-717-20

MitutoyoSKU: 573-717-20
List price: £1,350.00 Offer price: £986.00 Excluding VAT
The ABSOLUTE Digimatic back-jaw centreline calipers offer you the following benefits:

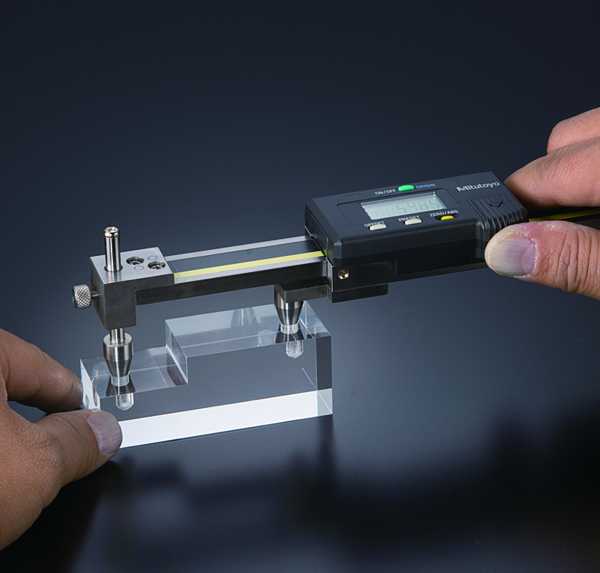

  • Specially designed to allow you to measure hole centre-to-centre or
    edge-to-centre distances.
  • You can read measurements more easily from above, thanks to the jaws being on the back of the slide.
  • Direct reading of pitch measurements is also available due to the offset value setting function.
Specification
Delivered:
In a box with SR44 battery
Range:
10.1 - 300 mm
Max. Permissible Error S MPE:
±0,15 mm
Digital step:
0,01 mm
Max. response speed:
Unlimited
ORIGIN (ABS-Zero):
Yes
OFFSET:
10 mm
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
Data output:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
550 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Back-Jaw Caliper, IP67 10,1-300mm, Center/Center 573-717-20 Click to open the PDF document
