MitutoyoSKU: 511-521
List price: £1,400.00 Offer price: £1,022.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

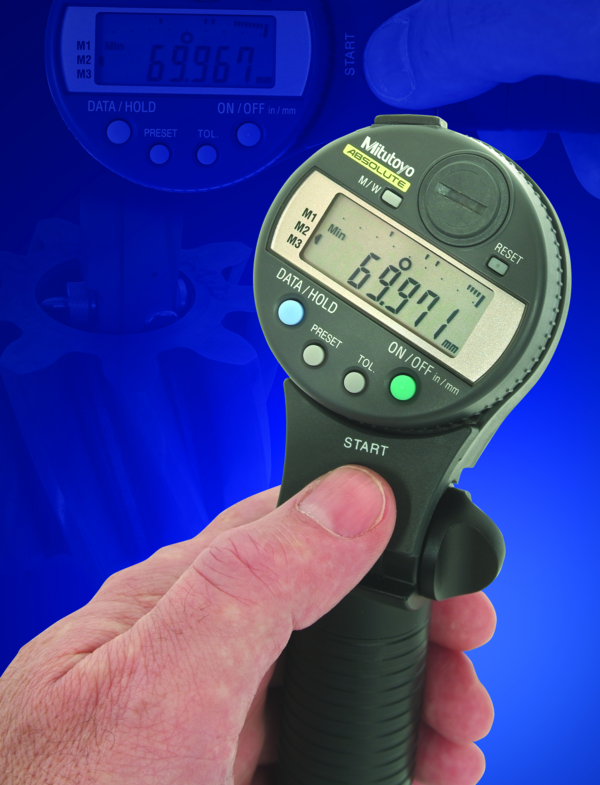

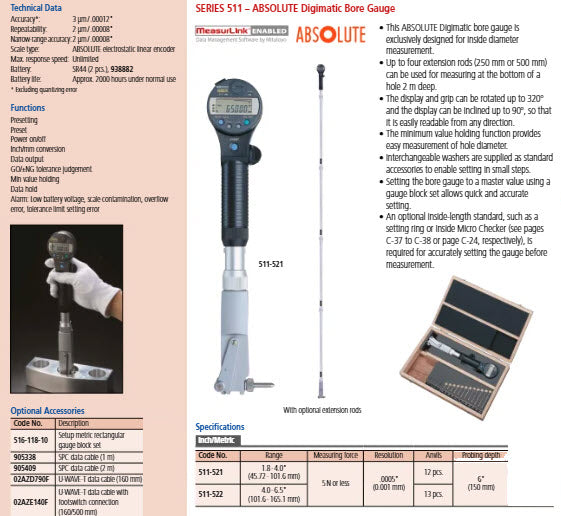

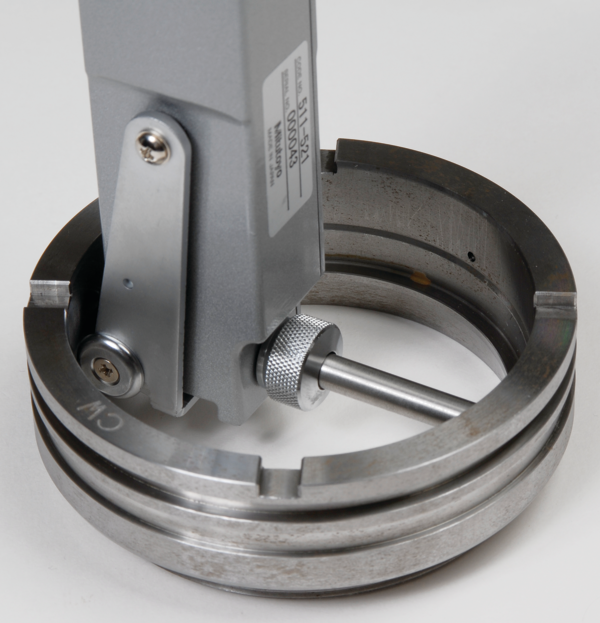

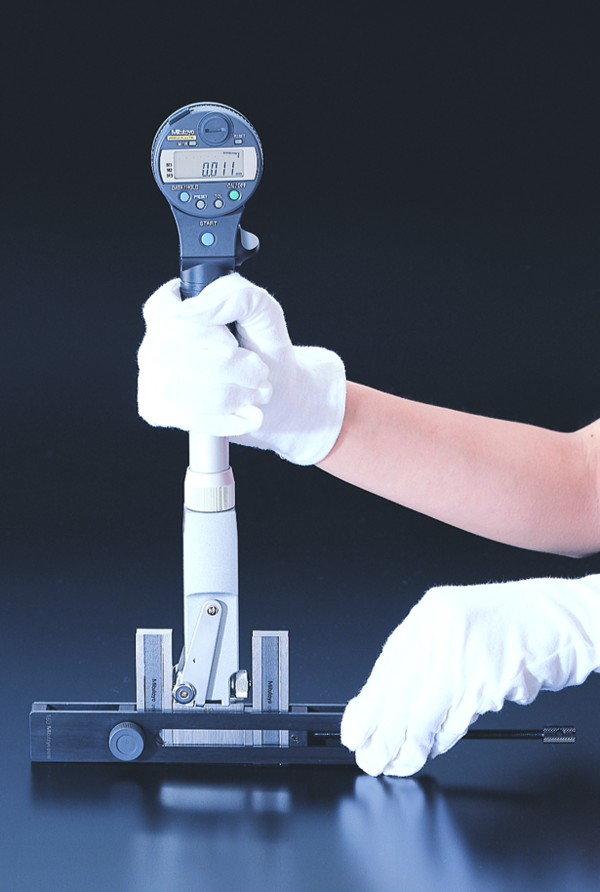

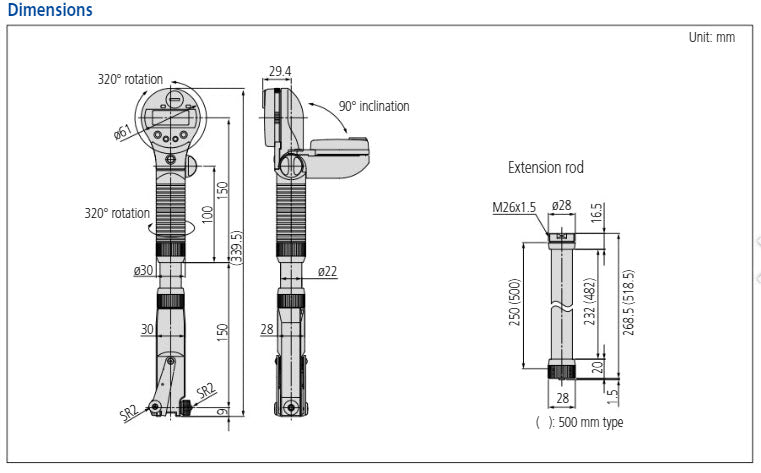

A Mitutoyo ABSOLUTE Digimatic bore gauge designed exclusively for ID measurement. A minimum value holding function provides easy measurement of hole diameter. Up to three sets of master value and upper/lower tolerance values can be memorized and recalled at the push of a button. An analogue bar indicator is integrated to enhance ease of reading, especially for GO/å±NG judgement. Measurements can be made inside very deep holes by using up to four extension rods.
Features
Inch-Metric:
Inch/Metric
Range:
1.8 - 4 "
Digital step:
0,001 mm
Stroke of contact point:
1.2 mm

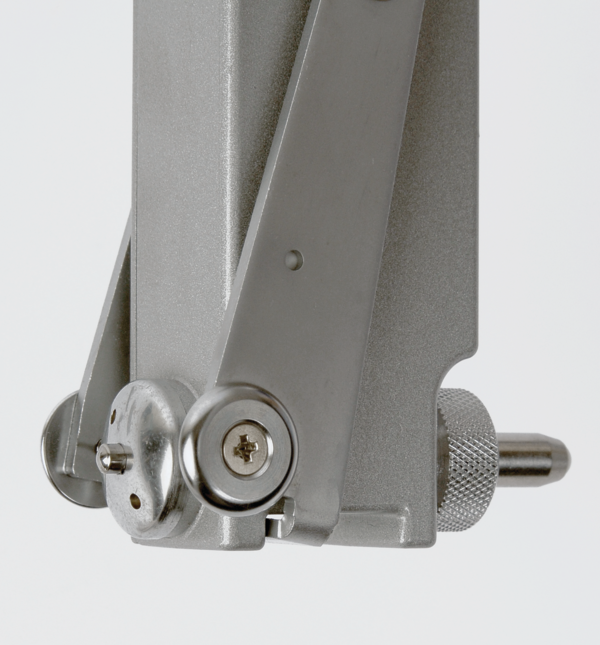

Number of anvils:
12
Accuracy:
0,003 mm
(excluding quantizing error)
Repeatability:
0,002 mm
Display:
LCD character height 7.5 mm
Measuring force:
?5 N
Sampling Frequency:
50 times/sec*
Power supply:
2 batteries SR-44
Battery life:
2000.0 hours
ON/OFF:
Yes
DATA (output with cable) / HOLD (display value):
Yes

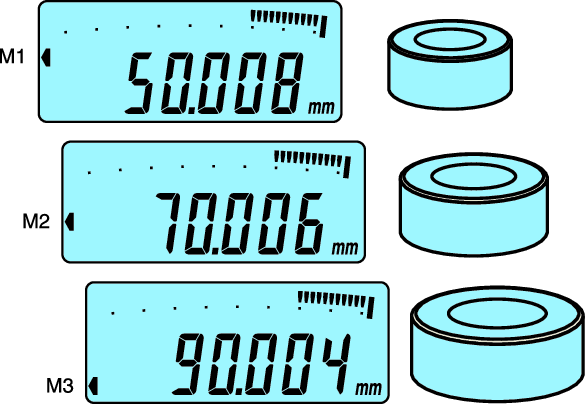

PRESET 3x:
Yes
MIN Value Hold:
Yes
Digital/Analog:
Digital
Delivered:

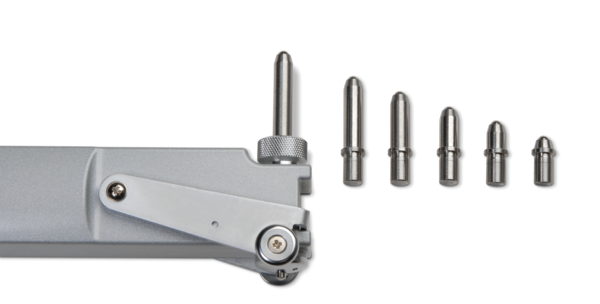

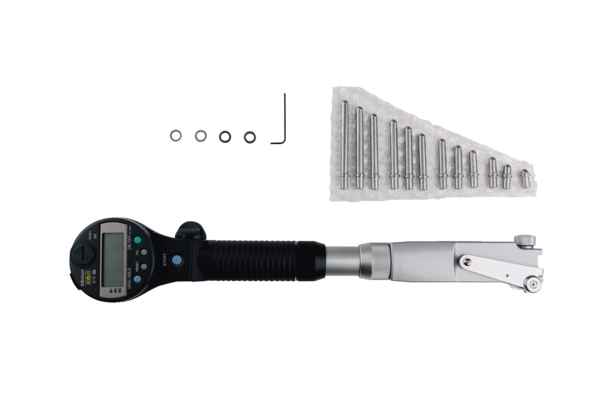

In a wooden box with SR44 battery, 12 anvils, 4 interchangeabble washers
GO/±NG judgement:
Yes
Mass:
500 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Digital ABS Bore Gauge 511-521 Range 45-100mm/1.8-4" Click to open the PDF document
Product Document 2 Digital ABS Bore Gauge 511-521 Range 45-100mm/1.8-4" Click to open the PDF document
