Digital ABS Bore Gauge 511-522 Range 100-165mm/4-6.5"

Roll over image to zoom in Click on image to zoom

Digital ABS Bore Gauge 511-522 Range 100-165mm/4-6.5"

Name: Digital ABS Bore Gauge 511-522 Range 100-165mm/4-6.5"
Brand: Mitutoyo
SKU: 511-521
Price: 938.0 GBP
Availability: InStock

MitutoyoSKU: 511-521

All prices exclude VAT, which will be added at checkout.

Price:

£938.00 £1,340.00

Quantity:

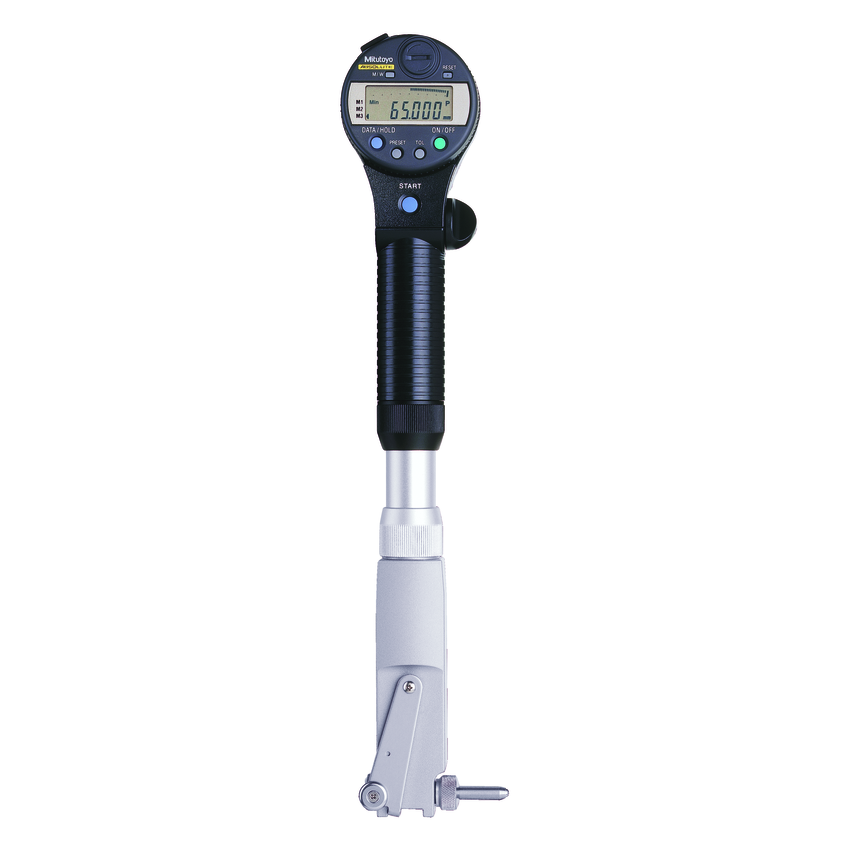

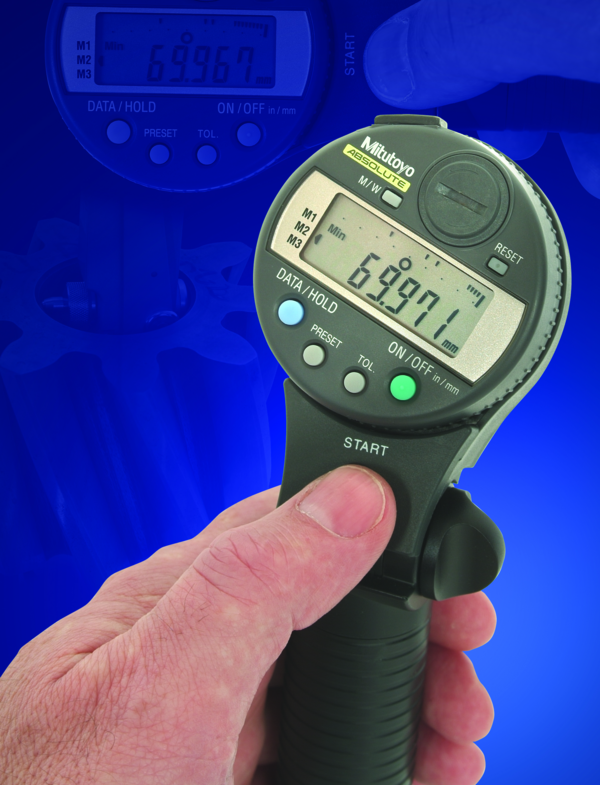

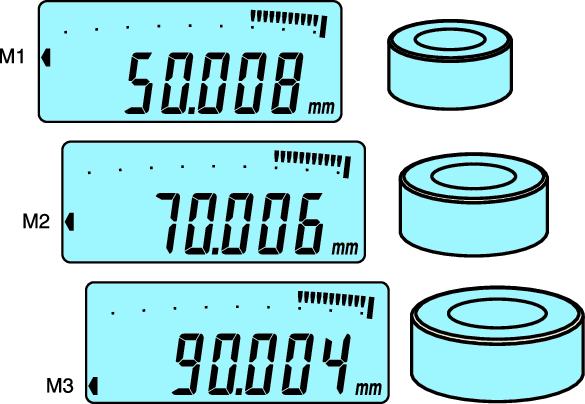

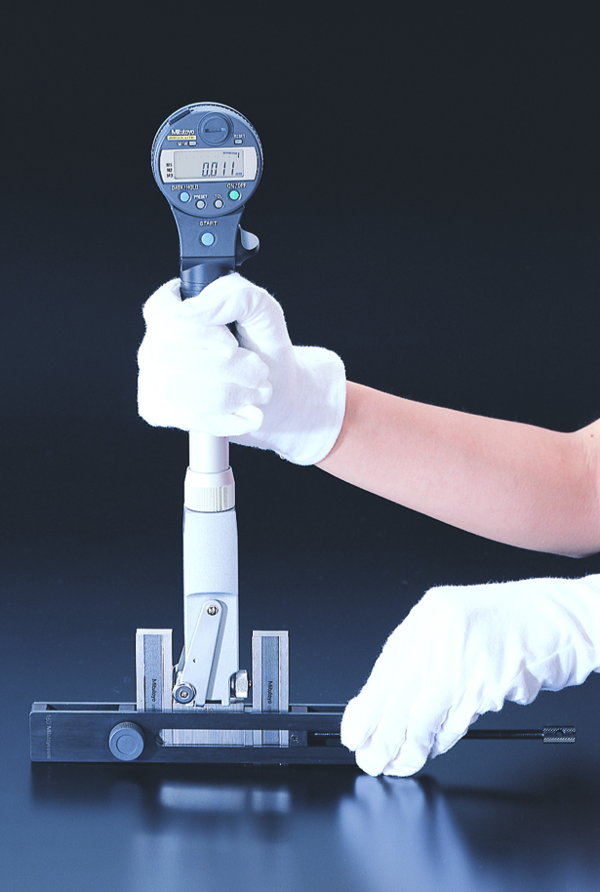

A Mitutoyo ABSOLUTE Digimatic bore gauge designed exclusively for ID measurement. A minimum value holding function provides easy measurement of hole diameter. Up to three sets of master value and upper/lower tolerance values can be memorized and recalled at the push of a button. An analog bar indicator is integrated to enhance ease of reading, especially for GO/å±NG judgement. Measurements can be made inside very deep holes by using up to four extension rods.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	511-521
Measuring Range	100-165mm
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP53
Measuring Force	≤5N
Repeatability	2µm/.00008"
Probing Depth	150mm/6"

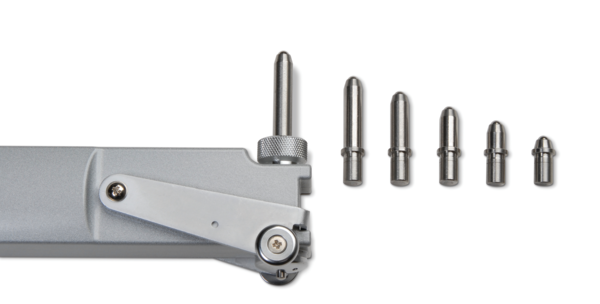

Anvils	13pcs
Resolution/Capacity	.001mm/.00005"

Inch-Metric:	Inch/Metric
Range:	4 - 6.5 "
Digital step:	0,001 mm
Stroke of contact point:	1.2 mm
Number of anvils:	13
Accuracy:	0,003 mm (excluding quantizing error)
Repeatability:	0,002 mm
Display:	LCD character height 7.5 mm
Measuring force:	≤5 N
Sampling Frequency:	50 times/sec*
Power supply:	2 batteries SR-44
Battery life:	2000.0 hours
ON/OFF:	Yes
DATA (output with cable) / HOLD (display value):	Yes
PRESET 3x:	Yes
MIN Value Hold:	Yes
Digital/Analog:	Digital

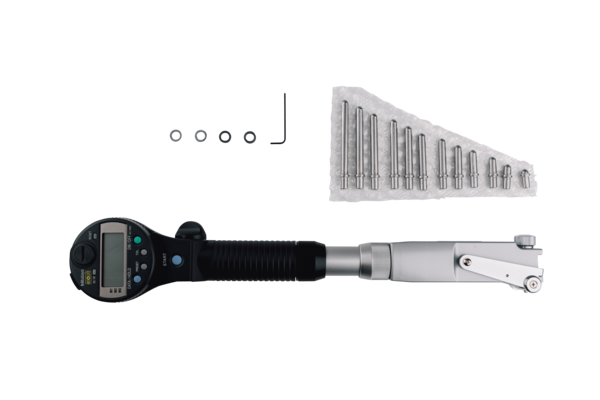

Delivered:	In a wooden box with SR44 battery, 13 anvils, 4 interchangeabble washers
GO/±NG judgement:	Yes
Mass:	570 g
