Digital ABS Borematic (Internal) Inch/Metric, 0,275-0,5", Interchangeable heads Set 568-928-10,

The Mitutoyo 568-928-10 Borematic Snap Open Bore Gage has the following specifications:

• Range: .275-.500″/6.985-12.7mm
• Resolution: .00005″/.001mm
• Interchangeable Head Set

The Mitutoyo Borematic Absolute Digimatic Snap Bore Gauges are one of the most popular three-point bore gages available on the market today. The borematic series incorporates a snap open lever to control the movement of the measuring anvils. The lever style readout saves users a lot of time compared to using a micrometer style readout where users have to continuously turn the thimble to retract or let the anvils out of the measuring head.  The snap open lever style readout creates better repeatability among users. The Borematic enables the operator to take measurements more accurately and quicker than ever before. The electronics in the borematic bore gages will retain the setting for the origin point for the entire battery life which saves time as users to not have to input the preset into the electronics each time they are going to use the bore gage. The display can also be rotated 330° which is helpful for users trying to read the diameter at any angle.

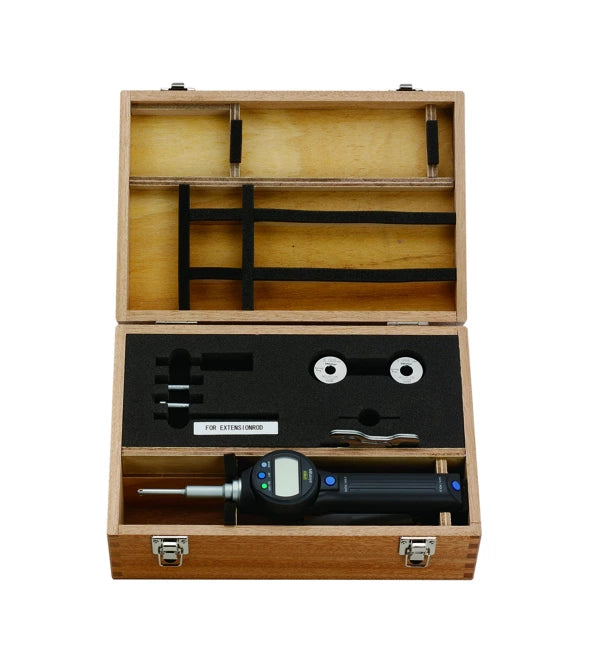

The Mitutoyo 568-928-10 borematic bore gage set includes the following:

• Display Unit 568-015
• 04AZB139 Head Assembly: .275-.350″/6.985-8.89mm
• 04AZB140 Head Assembly: .350-.425″/8.89-10.795mm
• 04AZB141 Head Assembly: .425-.500″/10.795-12.7mm

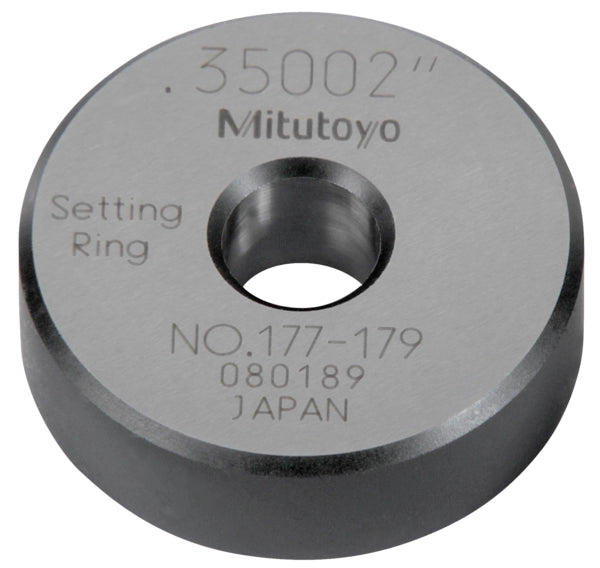

• 177-179 Setting Ring: .350″

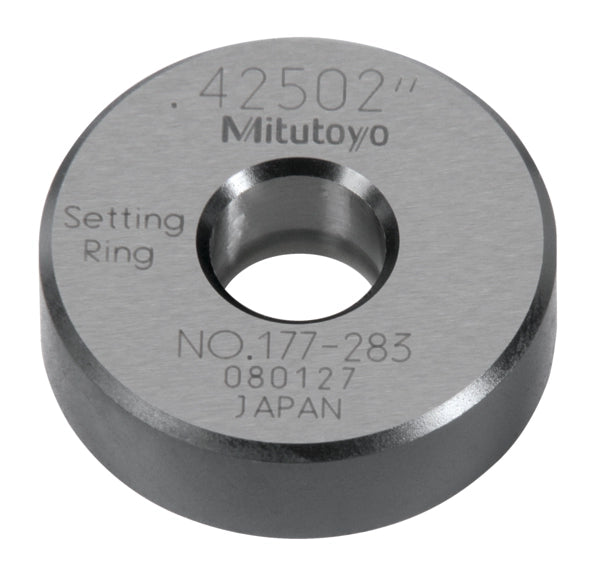

• 177-283 Setting Ring: .425″
