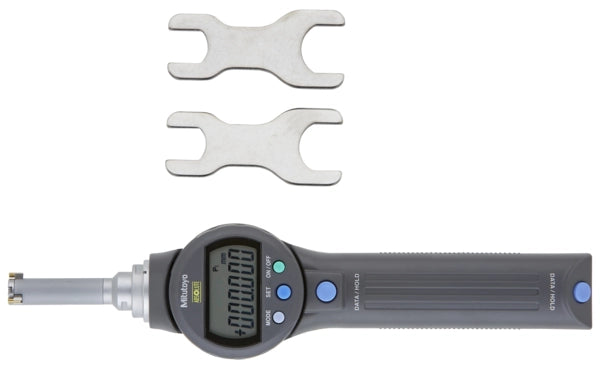

Mitutoyo 568-464 0.001mm/.00005" ABSOLUTE Digimatic Borematic Snap-Open Bore Gauge 12.7-16.51mm/0.5-0.65″

Roll over image to zoom in Click on image to zoom

Mitutoyo 568-464 0.001mm/.00005" ABSOLUTE Digimatic Borematic Snap-Open Bore Gauge 12.7-16.51mm/0.5-0.65″

Name: Mitutoyo 568-464 0.001mm/.00005" ABSOLUTE Digimatic Borematic Snap-Open Bore Gauge 12.7-16.51mm/0.5-0.65″
Brand: Mitutoyo
SKU: 568-464
Price: 903.0 GBP
Availability: InStock

MitutoyoSKU: 568-464

All prices exclude VAT, which will be added at checkout.

Price:

£903.00 £1,290.00

Quantity:

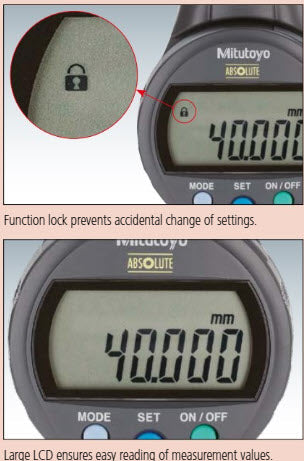

A unique, Mitutoyo digital bore gauge that enables measurements to be made more accurately and more quickly than ever before. Trigger-grip operation ensures fast, easy measurement and a constant measurement force for maximum repeatability on the shop floor. The Borematic ABSOLUTE scale retains the last setting for the life of the battery, therefore repeated setting is not necessary. Large-digit, rotatable LCD display aids convenient, error-free reading.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

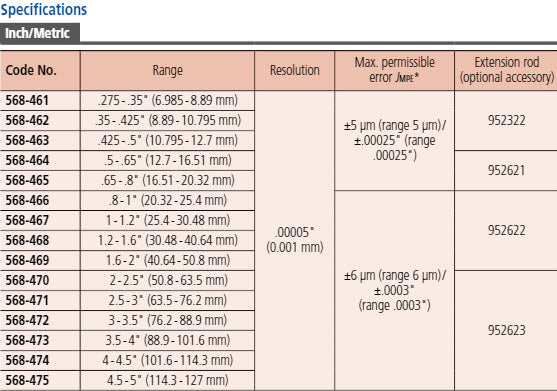

Product Information
Part Number	568-464
Measuring Range	0.500-0.650"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Type	Borematic
2 & 3 Point Micrometer Range	12.7-16.51mm/.5-.65"
Maximum Permissible Error	±.005mm/.00025"
Extension Rod (Optional Accessory)	952322 - 100mm
Calibration Code	CAL11 B1
Resolution/Capacity	.001mm/.00005"

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	12.7-16.51mm/.5-.65"
Digital step:	0,00005" / 0,001 mm
Display:	LCD, character height: 11 mm
Measuring face:	Titanium coated tungsten carbide taper: tungsten carbide
Measuring method:	3-point
Power supply:	1 battery SR-44
Battery life:	Approx. 5000 hours
Delivered:	Including box, key, 1 battery, certificate of inspection
ABS / INC (INC ZERO):	Yes
ON/OFF:	Yes
Function lock:	Yes
DATA (output with cable) / HOLD (display value):	Yes
2 x PRESET:	Yes
Delivered:	In a box with SR44 battery, spanner 04GAA857/04GAA858 (2 pcs.)
Data output:	Yes
GO/±NG judgement:	Yes
Mass:	480 g
