MitutoyoSKU: 568-936
List price: £4,280.00 Offer price: £3,124.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Flat Straight Type 905338
Part number: 905338  → View product
Mitutoyo Digimatic Cable, Flat Straight Type 905409
Part number: 905409  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE Connection Cable F Flat Straight Type 02AZD790F
Part number: 02AZD790F  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable F, Footswitch Flat Straight Type 02AZE140F
Part number: 02AZE140F  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380F
Part number: 06AFM380F  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View product

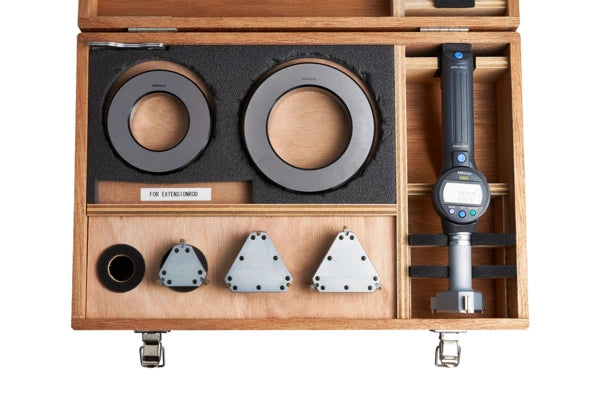

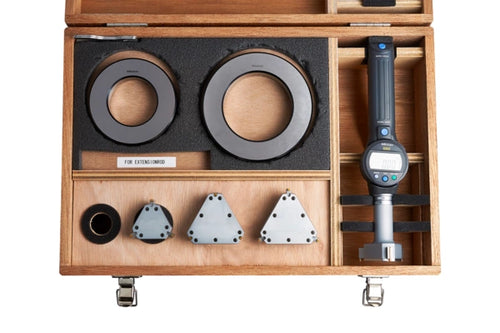

This is a Three-Point Digimatic Snap Open Bore Gauge Set with one display unit and interchangeable heads.
It offers you the following benefits:

  • It enables you to take measurements easily and quickly.
  • Titanium-coated measuring pins gives you excellent durability and impact resistance.
  • 330° rotatable display unit also gives you easy reading at any
    angle.
  • GO/NG tolerance judgement function.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
2 - 4 "
Digital step:
0,00005" / 0,001 mm
Individual ranges:
2-2.5"
2.5-3"
3-3.5"
3.5-4"
Display:
LCD, character height: 11 mm
Measuring face:
Titanium coated hardened steel
taper: tungsten carbide
Measuring method:
3-point
Setting rings included:

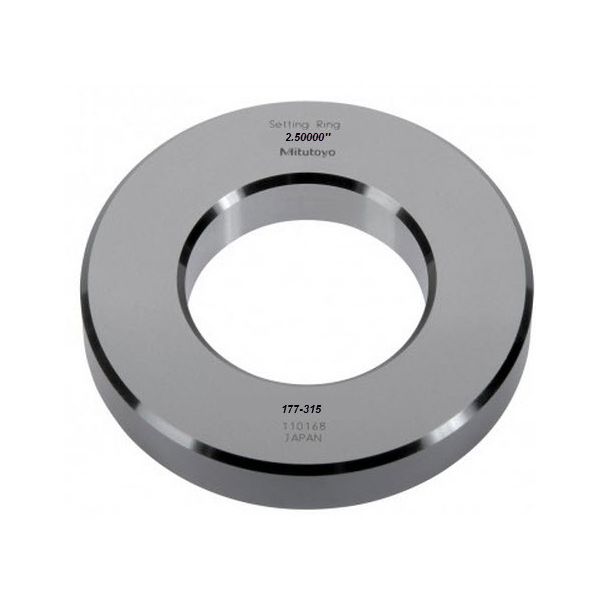

Ø2.5" (177-315)

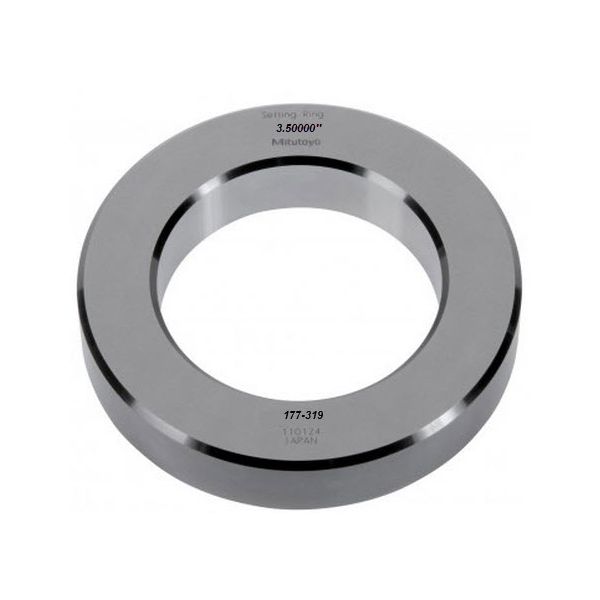

Ø3.5" (177-319)
Power supply:
1 battery SR-44
Battery life:
Approx. 5000 hours
Delivered:
Including box, key, 1 battery, certificate of inspection
ABS / INC (INC ZERO):
Yes
ON/OFF:
Yes
Function lock:
Yes
DATA (output with cable) / HOLD (display value):
Yes
2 x PRESET:
Yes
Delivered:
In a box with SR44 battery, spanner 04GAA858 (2 pcs.), setting rings (2 pcs.)
Data output:
Yes
GO/±NG judgement:
Yes
Mass:
1850 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Digital ABS Borematic (Internal) Inch/Metric, 50.8-101.6/2-4", Interchangeable heads Set 568-936 Click to open the PDF document
