Digital ABS Borematic (Internal) Set 6-12mm 568-924

Roll over image to zoom in Click on image to zoom

Digital ABS Borematic (Internal) Set 6-12mm 568-924

Name: Digital ABS Borematic (Internal) Set 6-12mm 568-924
Brand: Mitutoyo
SKU: 568-924
Price: 1445.0 GBP
Availability: InStock

MitutoyoSKU: 568-924

List price: £1,980.00 Offer price: £1,445.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

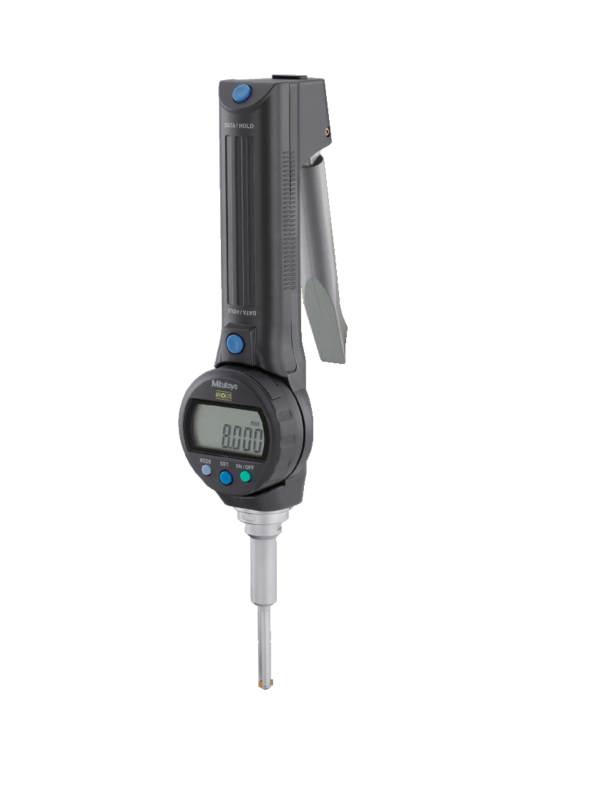

Mitutoyo; Digital ABS Borematic

A unique, Mitutoyo digital bore gauge that enables measurements to be made more accurately and more quickly than ever before. Trigger-grip operation ensures fast, easy measurement and a constant measurement force for maximum repeatability on the shop floor. The Borematic ABSOLUTE scale retains the last setting for the life of the battery, therefore repeated setting is not necessary. Large-digit, rotatable LCD display aids convenient, error-free reading.

All images are for representation only.

The Mitutoyo 568-924 Borematic Snap Open Bore Gage has the following specifications:

Range: 6-12mm
Resolution: .001mm

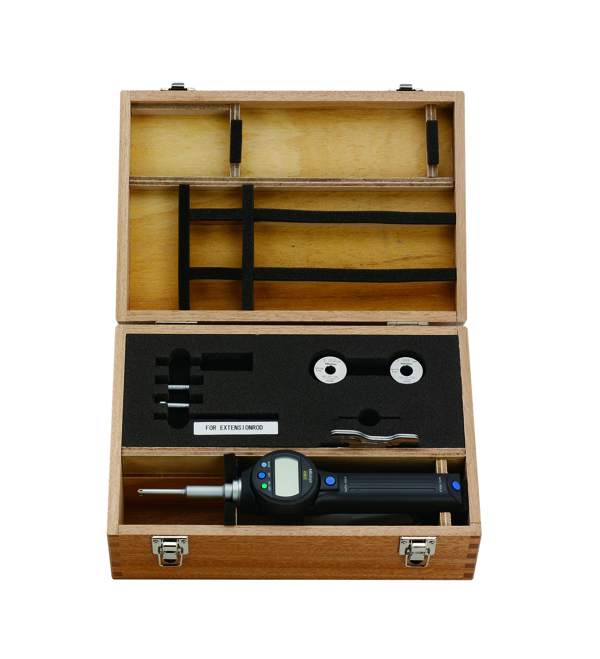

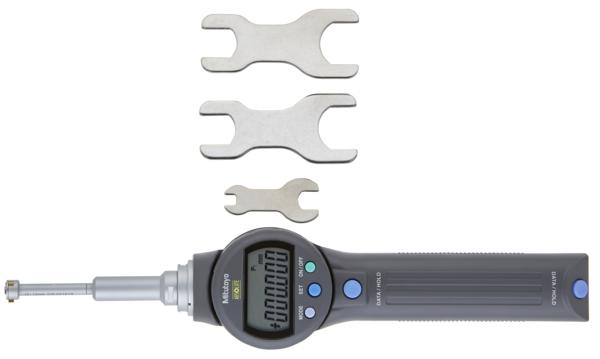

Interchangeable Head Set

The Mitutoyo Borematic Absolute Digimatic Snap Bore Gages are one of the most popular three-point bore gages available on the market today. The borematic series incorporates a snap open lever to control the movement of the measuring anvils. The lever style readout saves users a lot of time compared to using a micrometer style readout where users have to continuously turn the thimble to retract or let the anvils out of the measuring head. The snap open lever style readout creates better repeatability among users. The Borematic enables the operator to take measurements more accurately and quicker than ever before. The electronics in the borematic bore gages will retain the setting for the origin point for the entire battery life which saves time as users to not have to input the preset into the electronics each time they are going to use the bore gage. The display can also be rotated 330° which is helpful for users trying to read the diameter at any angle.

No application information is currently available.

Product Documents

Product Document Digital ABS Borematic (Internal) Set 6-12mm 568-924 Click to open the PDF document
