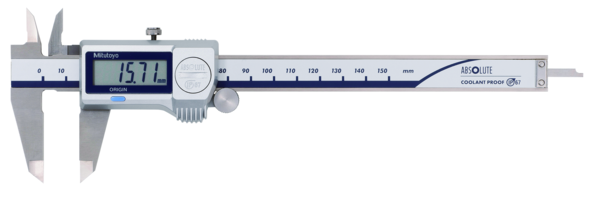

Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20
Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20
Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20
Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20
Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20
Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20

Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20

MitutoyoSKU: 500-703-20
List price: £266.00 Offer price: £194.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
  • Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
  • It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
  • ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Features
Delivered:
Including box, SR44 battery, certificate of inspection
Range:
0 - 200 mm
Depth bar:
flat
Thumb roller:
Yes
Data output:
No
Max. Permissible Error E MPE:
±0,02 mm
Max. Permissible Error S MPE:
±0,04 mm
Digital step:
0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
Delivered:
In a case, including 1 SR-44 battery
ORIGIN (ABS-Zero):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
198 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Caliper Coolant Proof IP67 0-200mm x .01mm 500-703-20 Click to open the PDF document
