MitutoyoSKU: 550-341-20
List price: £509.00 Offer price: £372.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

U-WAVE Fit Bluetooth, IP67 Type Wireless Transmitter for Caliper 264-624
Part number: 264-624  → View product
U-WAVE Fit, Buzzer Type Wireless Transmitter for Caliper 264-621
Part number: 264-621  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
U-WAVE Fit Bluetooth, Buzzer Type Wireless Transmitter for Caliper 264-625
Part number: 264-625  → View product
U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620
Part number: 264-620  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Digimatic Cable with Data Button IP Type 05CZA624
Part number: 05CZA624  → View product
Digimatic Cable with Data Button IP Type 05CZA625
Part number: 05CZA625  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380A
Part number: 06AFM380A  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View product

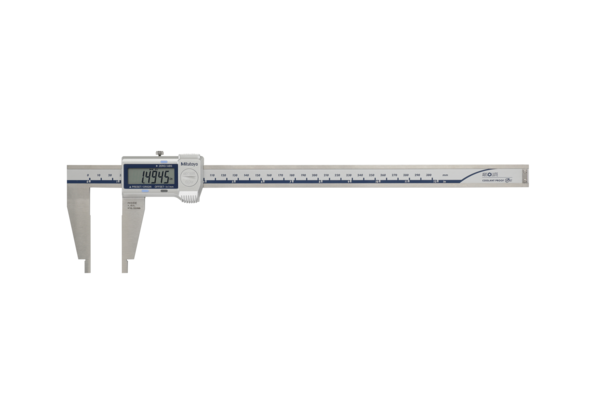

This is a Digimatic caliper with nib-style jaws that lets you measure inside dimensions.
It offers you the following benefits:
  • Rounded measuring surfaces enable you to measure inside
    dimensions.
  • ABSOLUTE System delivers reliable measurements.

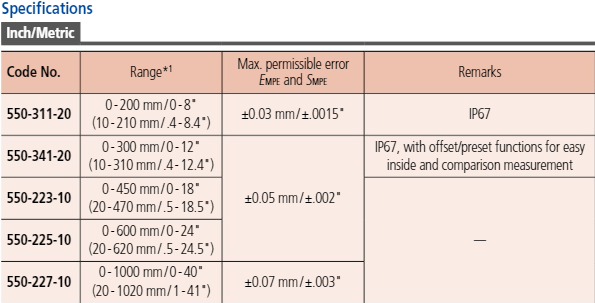

Specification
Delivered:
In a box with SR44 battery
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Inside measuring from:
0.404"/10.26 mm
Max. Permissible Error E MPE:
±0.002"
Max. Permissible Error S MPE:
±0.002"
OFFSET:
0.4"
Mass:
365 g
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (200 mm) 11 mm (300 mm) 10 mm (>300 mm)
Remarks:
IP67
Delivered:
In a case, including 1 SR-44 battery
Battery life:
Approx. 5 years, 3,5 years (>300 mm)
ORIGIN (ABS-Zero):
Yes
PRESET:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Data output:
Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20 Click to open the PDF document
