MitutoyoSKU: 551-224-10
List price: £973.00 Offer price: £719.90 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Straight, Data Button, 959149
Part number: 959149  → View product
Mitutoyo Data Hold Unit 959143
Part number: 959143  → View product
Mitutoyo Digimatic Cable, Straight, Data Button, 959150
Part number: 959150  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable C Straight, with Data Button 02AZD790C
Part number: 02AZD790C  → View product
U-WAVE Connection Cable C, Footswitch Straight, with Data Button 02AZE140C
Part number: 02AZE140C  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380C
Part number: 06AFM380C  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View product

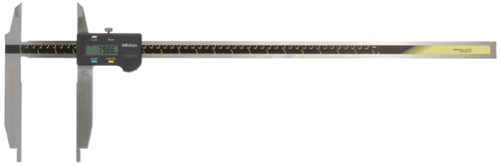

This is a Digimatic caliper with nib-style and standard jaws.
It offers you the following benefits:
  • Knife-shaped measuring surfaces allow you to take outside
    measurements.
  • Rounded measuring surfaces enable you to measure inside
    dimensions.
  • ABSOLUTE System delivers reliable measurements.
Specification
Delivered:
In a box with SR44 battery
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
0 - 20 "/0-500mm
Inside measuring from:
0.504"/12.8 mm
Max. Permissible Error E MPE:
±0.0025"
Max. Permissible Error S MPE:
±0.0025"
Mass:
1060 g
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (200 mm) 11 mm (300 mm) 10 mm (>300 mm)
Delivered:
In a case, including 1 SR-44 battery
Battery life:
Approx. 5 years, 3,5 years (>300 mm)
ORIGIN (ABS-Zero):
Yes
ON/OFF:
Yes
Low voltage alarm:
Yes
Data output:
Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Caliper Nib Style/Std. Jaws Inch/Metric, 0-20"/0-500mm 551-224-10 Click to open the PDF document
