Mitutoyo Digital ABS Caliper Nib Style/Std. Jaws Inch/Metric, 0-40"/0-1000mm 551-227-10

MitutoyoSKU: 551-227-10
List price: £1,760.00 Offer price: £1,285.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

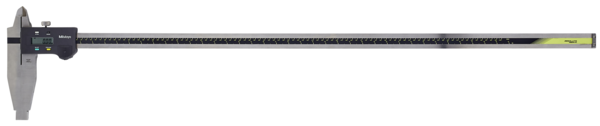

This is a Digimatic caliper with nib-style and standard jaws.
It offers you the following benefits:
  • Knife-shaped measuring surfaces allow you to take outside
    measurements.
  • Rounded measuring surfaces enable you to measure inside
    dimensions.
  • ABSOLUTE System delivers reliable measurements.
Specification
Delivered:
In a box with SR44 battery
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
0 - 40 "/0-1000mm
Inside measuring from:
1,004"/25.5 mm
Max. Permissible Error E MPE:
±0.003"
Max. Permissible Error S MPE:
±0.003"
Mass:
3430 g
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (200 mm) 11 mm (300 mm) 10 mm (>300 mm)
Delivered:

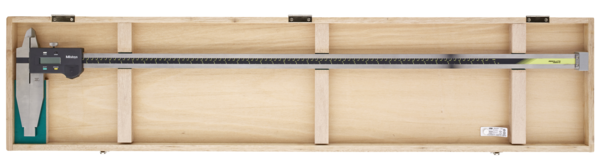

In a case, including 1 SR-44 battery
Battery life:
Approx. 5 years, 3,5 years (>300 mm)
ORIGIN (ABS-Zero):
Yes
ON/OFF:
Yes
Low voltage alarm:
Yes
Data output:
Yes

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Caliper Nib Style/Std. Jaws Inch/Metric, 0-40"/0-1000mm 551-227-10 Click to open the PDF document
