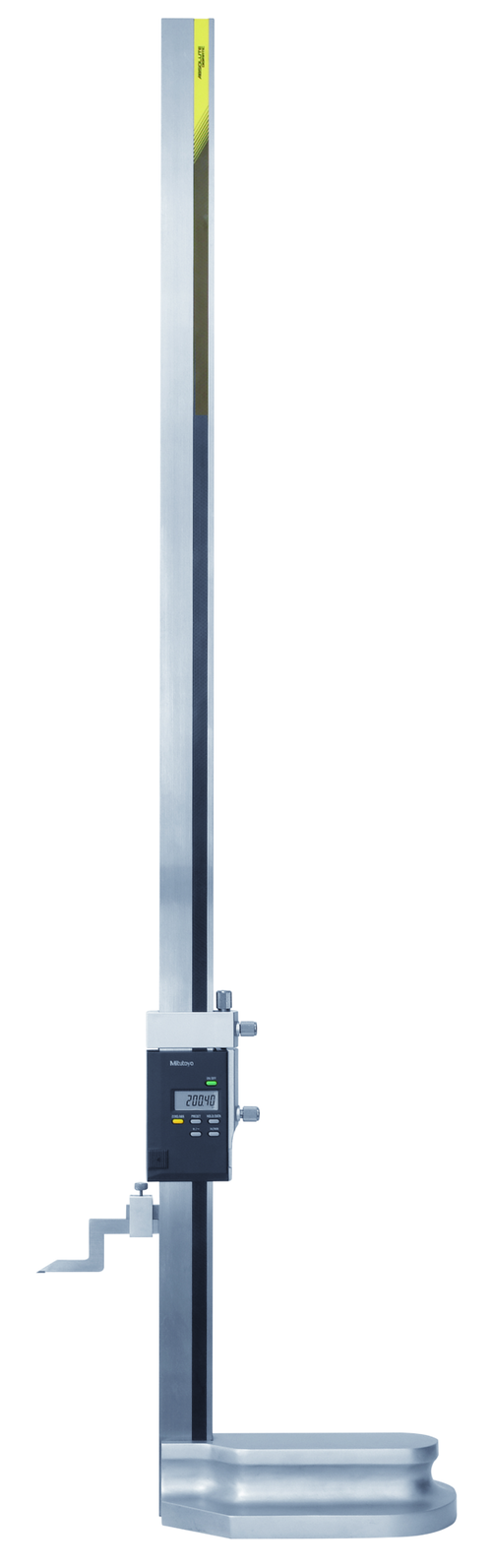

Name: Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248
Brand: Mitutoyo
SKU: 570-248
Price: 2132.0 GBP
Availability: InStock

Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

A Mitutoyo digital height gauge with fine adjustment. ABSOLUTE linear encoder eliminates overspeed errors. SPC data output.

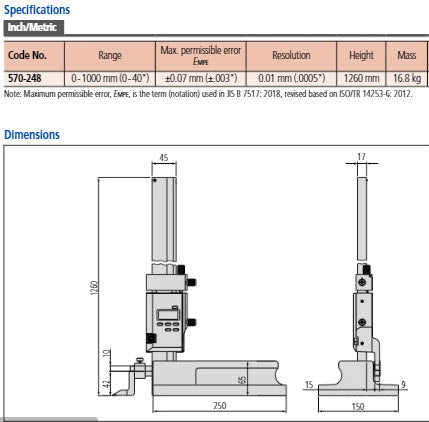

Specification

Digital/Analog:	Digital
Delivered:	In a carton box, with carbide tipped scriber, scriber clamp, SR44 battery
Range:	0 - 40 "/0-1000mm
Digital step:	0,0005"/0,01 mm
Max. Permissible Error E MPE:	±0,003"/±0,07 mm
Max. Permissible Error J MPE:	±0,07 mm/0.003"
Scale:	ABSOLUTE electrostatic linear encoder
Display:	LCD, 6-digit
Max. response speed:	Unlimited
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
PRESET:	Yes
ORIGIN (ABS-Zero):	Yes
DATA (output with cable) / HOLD (display value):	Yes
Low voltage alarm:	Yes
±SWITCHING:	Yes
Inch-Metric:	Inch/Metric
Delivered:	Including 1 battery, scriber and scriber holder
Power supply:	1 battery SR-44
Battery life:	approx. 5000 hours
Mass:	16.8 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248 Click to open the PDF document
