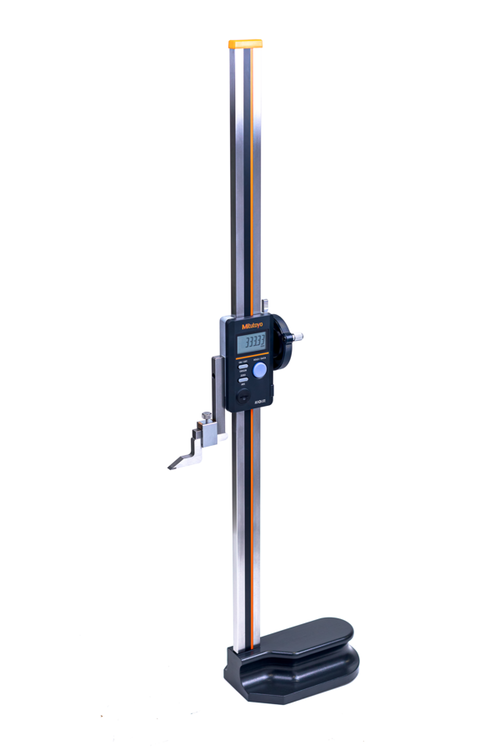

Mitutoyo Digital ABS Height Gauge Inch/Metric, 0-600mm/ 0-24", with Handwheel 570-414

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital ABS Height Gauge Inch/Metric, 0-600mm/ 0-24", with Handwheel 570-414

Name: Mitutoyo Digital ABS Height Gauge Inch/Metric, 0-600mm/ 0-24", with Handwheel 570-414
Brand: Mitutoyo
SKU: 570-414
Price: 869.0 GBP
Availability: InStock

MitutoyoSKU: 570-414

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£869.00 £1,190.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:

Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.
It comes with large and smooth-acting slider hand wheel
A carbide-tipped scriber is provided.
A large display and buttons for easy operability.

Product Information
Part Number	570-414
Measuring Ranges	0-600mm/0-24"
Resolution	.01mm/.0005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
Repeatability	.01mm/.0005"
Manufacturer	Mitutoyo

Digital/Analog:	Digital
Delivered:	In a carton box, with carbide tipped scriber, scriber clamp, SR44 battery
Range:	0 - 24" "
Digital step:	0,0005"/0,01 mm
Max. Permissible Error E MPE:	±0,002"/±0,05 mm
Fine adjustment:	6 mm
Scale:	ABSOLUTE capacitance type linear encoder
Display:	LCD, character height 12 mm
Max. response speed:	Unlimited
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
ORIGIN (ABS-Zero):	Yes
DATA (output with cable) / HOLD (display value):	Yes
Low voltage alarm:	Yes
Mm / inch switching:	Yes
Inch-Metric:	Inch/Metric
Delivered:	Including 1 battery, scriber and scriber clamp
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years under normal use
