MitutoyoSKU: 573-706-20
List price: £483.00 Offer price: £353.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

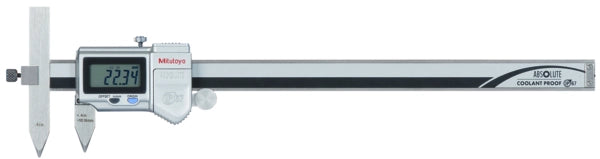

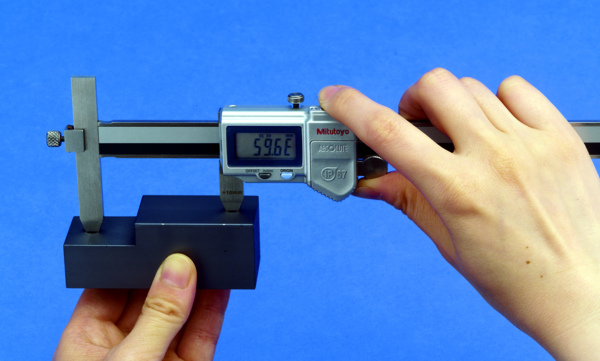

A Mitutoyo waterproof digital caliper suitable for use in the presence of coolant or cutting oil. Equipped with special offset-centreline-style jaws. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
Specification
Delivered:
In a box with SR44 battery
Max. Permissible Error S MPE:
±0,0015"/.003mm
OFFSET:
0.4"/10mm
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
ORIGIN (ABS-Zero):
Yes
OFFSET:
0.4"
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Data output:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
157 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABS Offset Centerline Caliper Inch/Metric, 10-210mm/0,4-8,4", IP67, Thumb Roller 573-706-20 Click to open the PDF document
