Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10
Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10
Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10
Roll over image to zoom in Click on image to zoom
Media 1 of 4 More photos — use the arrows
Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10

Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10

MitutoyoSKU: 500-507-10
List price: £1,540.00 Offer price: £1,140.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Straight, Data Button, 959149
Part number: 959149  → View product
Mitutoyo Digimatic Cable, Straight, Data Button, 959150
Part number: 959150  → View product
Mitutoyo Data Hold Unit 959143
Part number: 959143  → View product

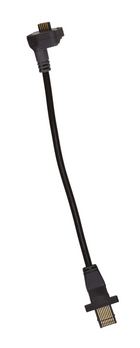

U-WAVE Connection Cable G Flat Straight IP Type 02AZD790G
Part number: 02AZD790G  → View product

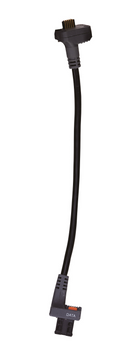

U-WAVE Connection Cable C Straight, with Data Button 02AZD790C
Part number: 02AZD790C  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable C, Footswitch Straight, with Data Button 02AZE140C
Part number: 02AZE140C  → View product
U-WAVE-T Transmitter Mounting Plate Universal Type 02AZE200
Part number: 02AZE200  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380C
Part number: 06AFM380C  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View product

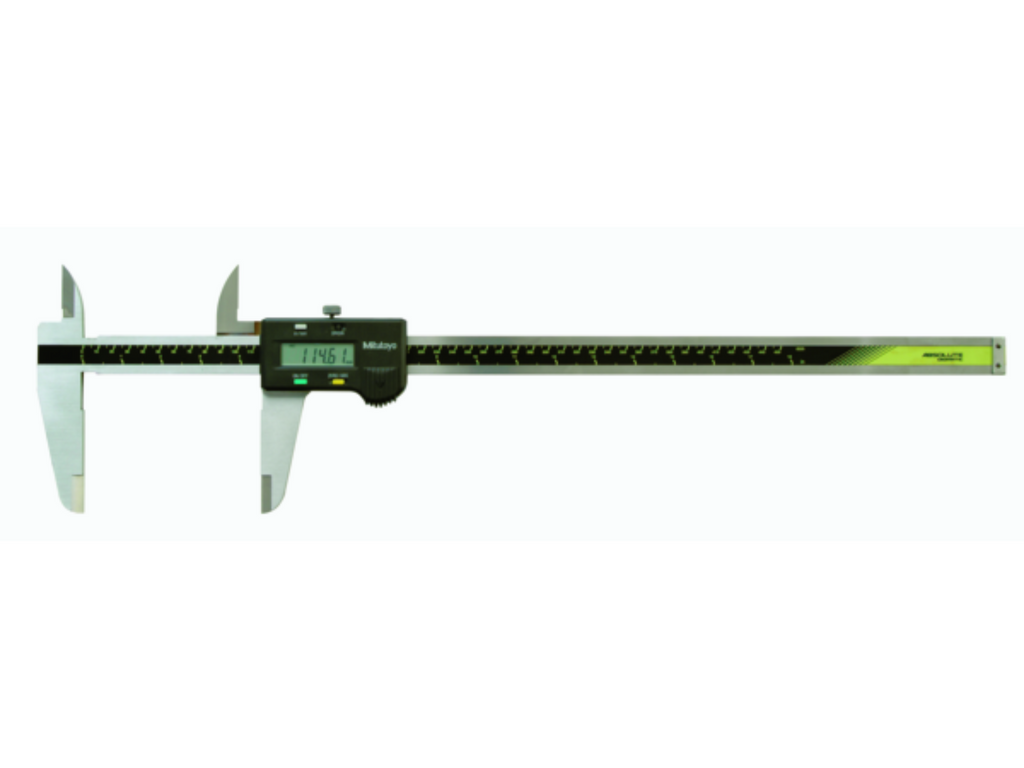

A Mitutoyo digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

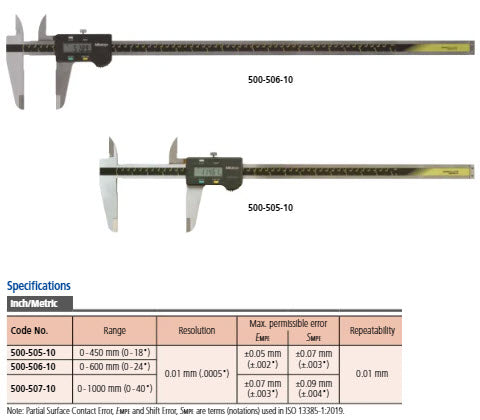

Specification
Delivered:
Including SR44 battery
Max. Permissible Error E MPE:
±0,003"/.07mm
Max. Permissible Error S MPE:
±0,004"/.1mm
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 10 mm
ORIGIN (ABS-Zero):
Yes
ON/OFF:
Yes
Low voltage alarm:
Yes
Data output:
Yes
Battery life:
Approx. 20000 hours
Mass:
3700 g

No technical information is currently available.

No application information is currently available.

Product Video

Product Documents

Product Document Mitutoyo Digital ABSOLUTE AOS Calipers 0-1000mm (0-40") With Output 500-507-10 Click to open the PDF document
