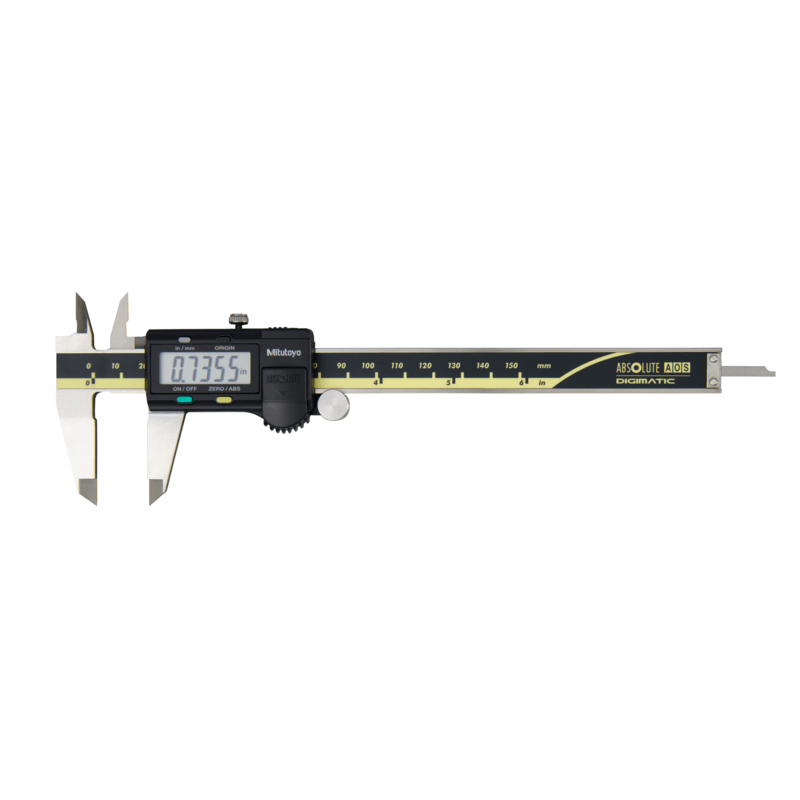

Name: Mitutoyo Absolute aos Caliper 0-150mm/0-6" Square Depth Rod & Thumb Roller 500-171-30
Brand: Mitutoyo
SKU: 500-171-30
Price: 150.0 GBP
Availability: InStock

Mitutoyo Absolute aos Caliper 0-150mm/0-6" Square Depth Rod & Thumb Roller 500-171-30

Roll over image to zoom in Click on image to zoom

Overview Technical Information Applications Videos & Documents

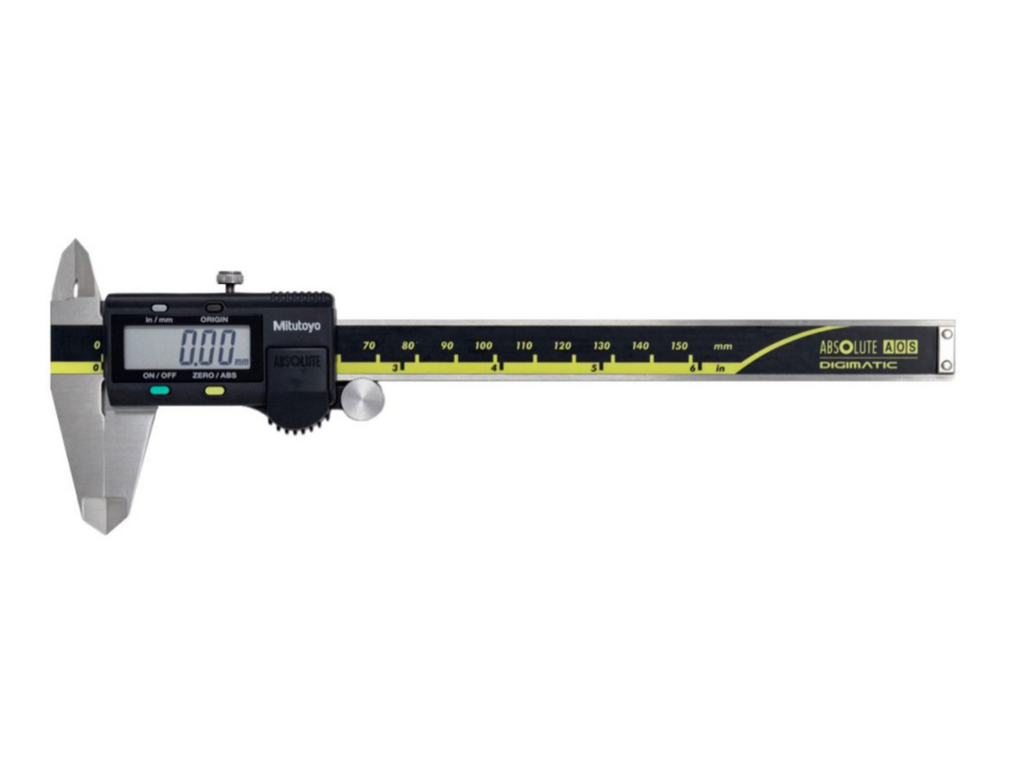

A Mitutoyo digital caliper equipped with standard outside and inside jaws. Hardened stainless steel construction and equipped with ABSOLUTE System scale for error free, high-speed measurement. SPC data output.

No technical information is currently available.

No application information is currently available.

Product Video

Product Documents

Product Document Mitutoyo Absolute aos Caliper 0-150mm/0-6" Square Depth Rod & Thumb Roller 500-171-30 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Delivered:	Including box, SR44 battery, certificate of inspection
Range:	0 - 6 "/0-150mm
Depth bar:	flat
Thumb roller:	Yes
Data output:	Yes
Max. Permissible Error E MPE:	±0,001"/.02mm
Max. Permissible Error S MPE:	±0,002"
Digital step:	0,0005"/0,01 mm
Max. response speed:	Unlimited
Display:	LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
Delivered:	In a case, including 1 SR-44 battery
ORIGIN (ABS-Zero):	Yes
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Battery life:	Approx. 5 years under normal use
Mass:	168 g
