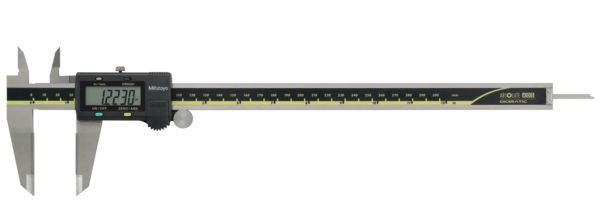

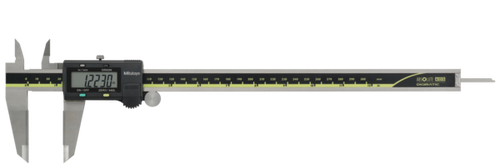

MitutoyoSKU: 500-166-30
List price: £824.00 Offer price: £602.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

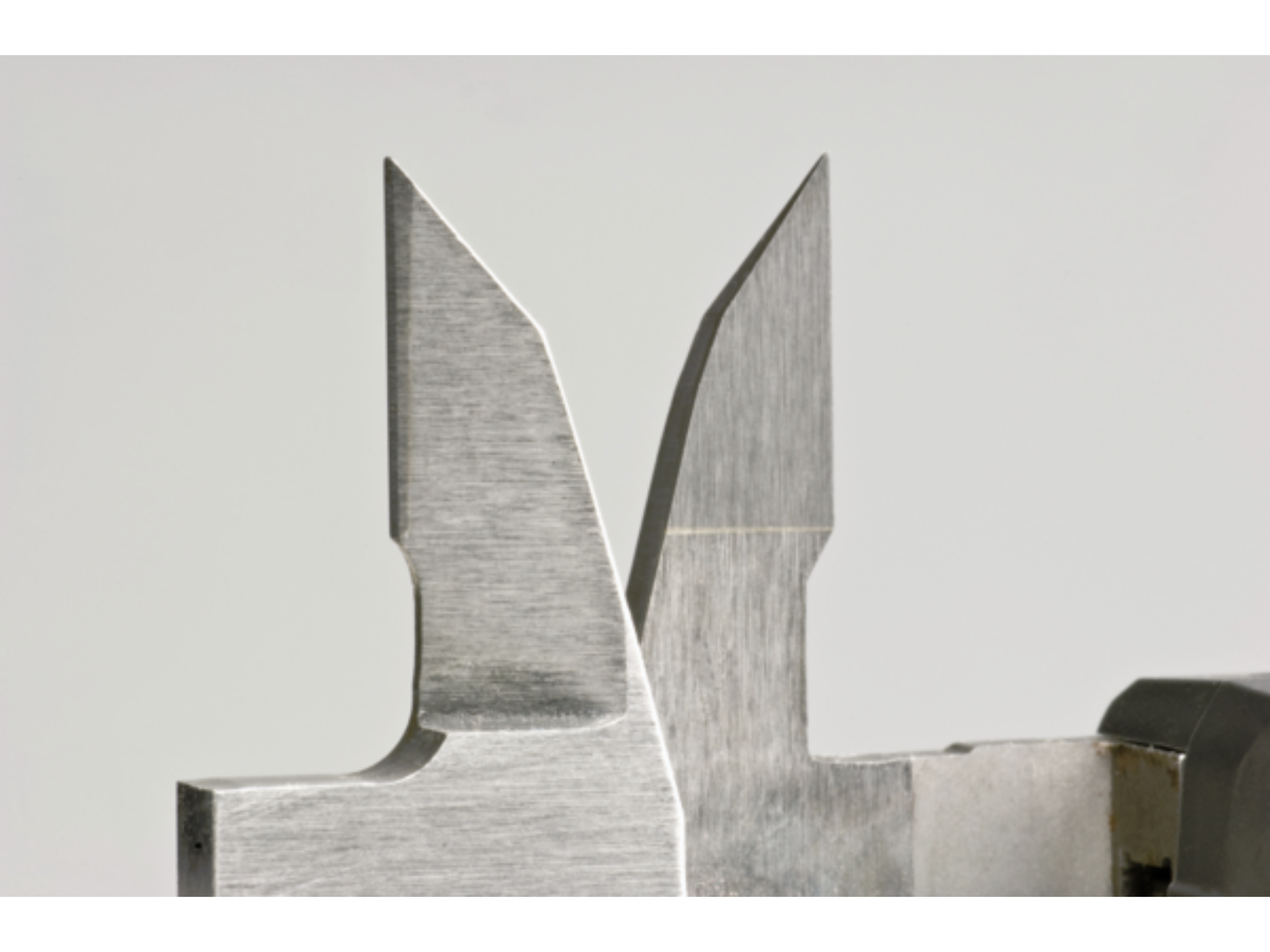

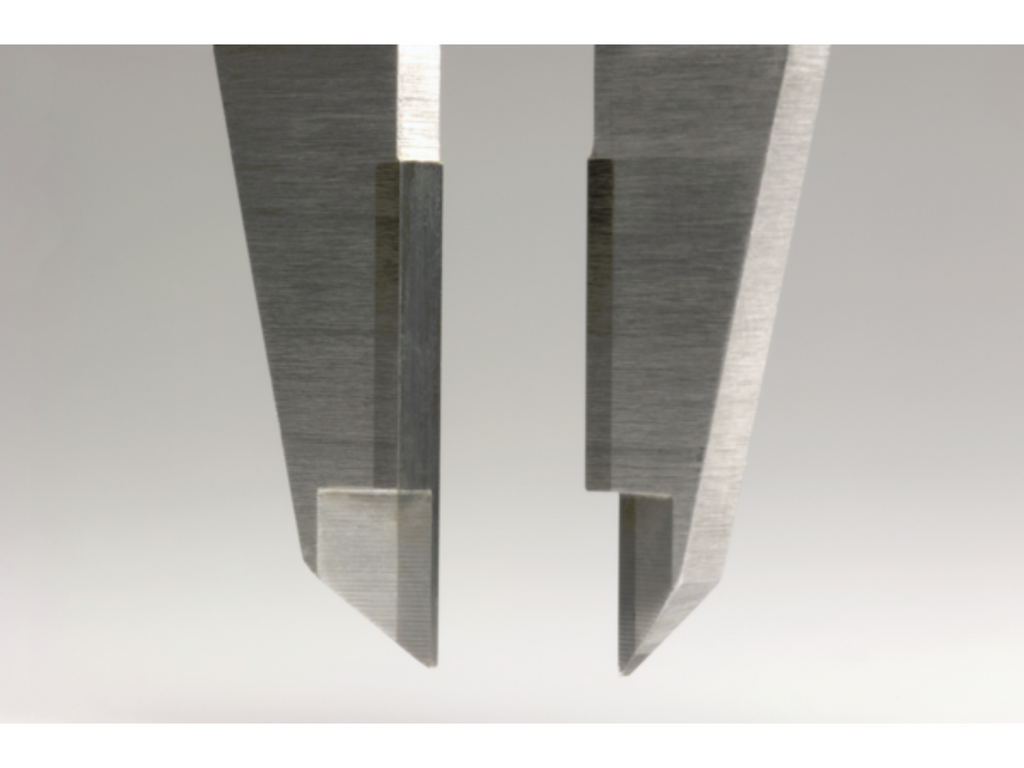

These Digimatic calipers have carbide-tipped jaws and allow you to take reliable measurements and offer you the following benefits:
  • Thanks to the adoption of the electromagnetic induction type ABS encoder, this caliper can be used without concern for contamination on the scale face during measurement. Detection signal is not affected by dirt (water, oil, etc.) on surface of a scale.
  • The slider provides smooth, stable and comfortable operation.
  • Character height: 9 mm (alleviation of fatigue with the high-contrast LCD)
  • The ABS (ABSOLUTE) scale requires no origin setting after power-on and also has no limit to response speed.
  • Extraordinary battery life.
Specification
Delivered:
Including box, SR44 battery, certificate of inspection
Range:
0 - 12 "/0-300mm
Depth bar:
flat
Data output:
No
Max. Permissible Error E MPE:
±0,0015"/.04mm
Max. Permissible Error S MPE:
±0,0025"/.06mm
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
ORIGIN (ABS-Zero):
Yes
ON/OFF:
Yes
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
350 g

No technical information is currently available.

No application information is currently available.

Product Video

Product Documents

Product Document Mitutoyo Digital ABSOLUTE AOS Calipers 0-300mm (0-12") W/O Output Carbide OD/ID Jaws 500-166-30 Click to open the PDF document
