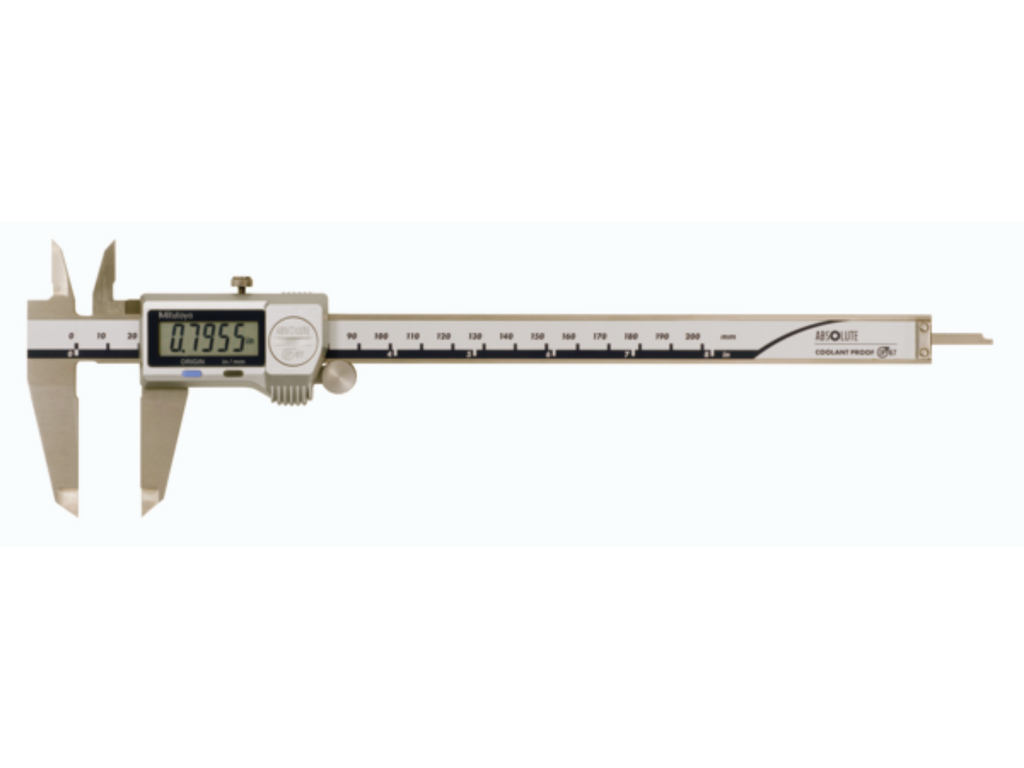

Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Caliper 0-200mm(0-8") W/O Output 500-753-20

MitutoyoSKU: 500-753-20
List price: £273.00 Offer price: £199.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
  • Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
  • It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
  • ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Specification
Delivered:
Including box, SR44 battery, certificate of inspection
Depth bar:
flat
Thumb roller:
Yes
Data output:
No
Max. Permissible Error E MPE:
±0,001"
Max. Permissible Error S MPE:
±0,002"
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
Delivered:
In a case, including 1 SR-44 battery
ORIGIN (ABS-Zero):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
194 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Caliper 0-200mm(0-8") W/O Output 500-753-20 Click to open the PDF document
