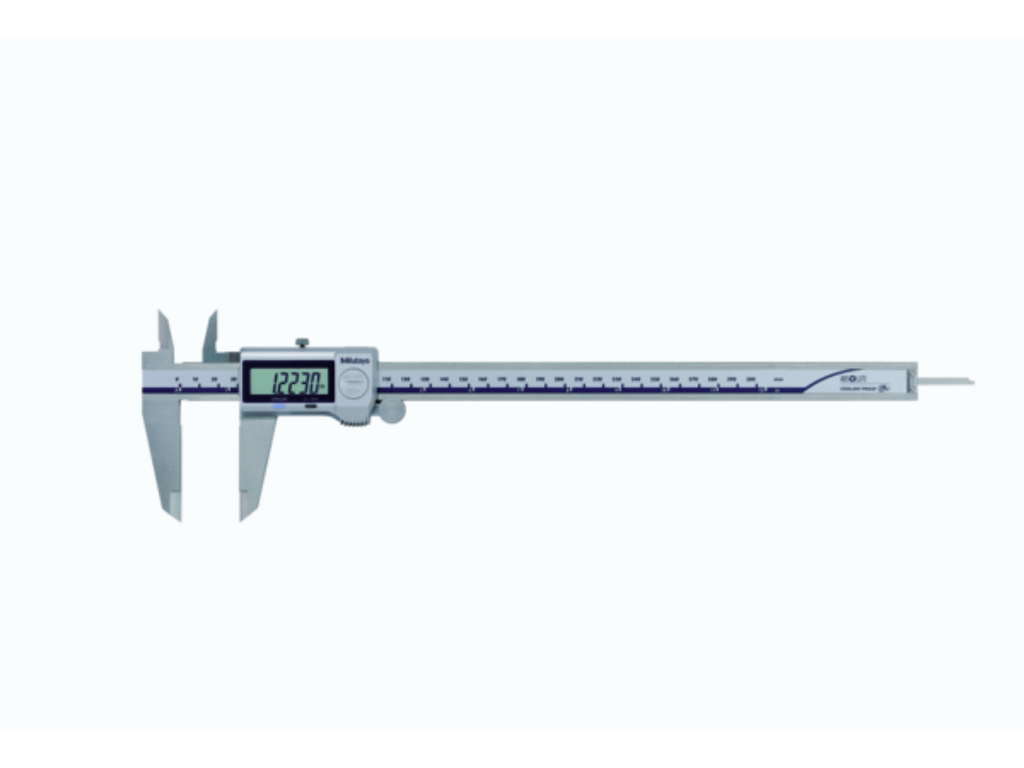

Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Caliper 0-300mm(0-12") W/O Output 500-754-20

MitutoyoSKU: 500-754-20

List price: Regular price£384.00 Offer price: Sale price£280.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

MHC 101-0110 Centreline accessory kit for Calipers
Part number: 101-0110  → View product
MHC 101-0008 Centreline  gauge for Calipers, 4", 6", 8"
Part number: 101-0008  → View product
MHC 101-0020 Caliper Accessory set Caliper Accessory Kit: 8 Pc, Use with Vernier, Dial & Electronic Calipers, Includes (2) Ball Contact Points, (2) Conical Contact Points, (2) Flat Contact Points & (2) Spline Contact Points
Part number: 101-0020  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
Mitutoyo CERA Caliper Checker 20-300mm 515-555
Part number: 515-555  → View product
Mitutoyo 516-122-10 Caliper Check Set Consisting 41.3mm, 131.4mm Gauge blocks and 20mm ring Gauge Grade 1
Part number: 516-122-10  → View product
Mitutoyo Depth Base Attachment for Caliper, 100mm
Part number: 050084-10  → View product
Mitutoyo Depth Base Attachment for Caliper, 75mm
Part number: 050083-10  → View product
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:

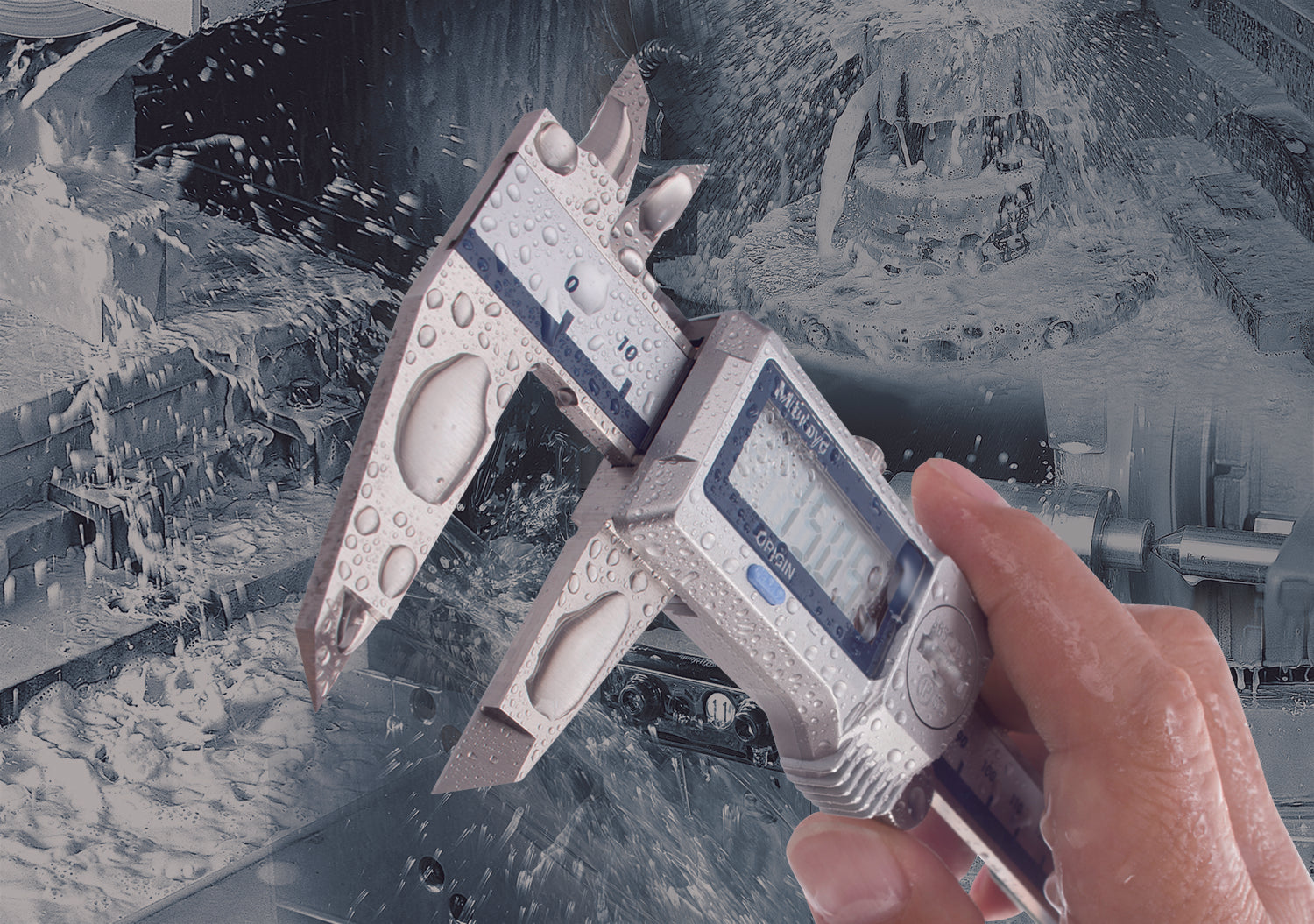

  • Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
  • It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
  • ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Delivered:
Including box, SR44 battery, certificate of inspection
Depth bar:
flat
Thumb roller:
Yes
Data output:
No

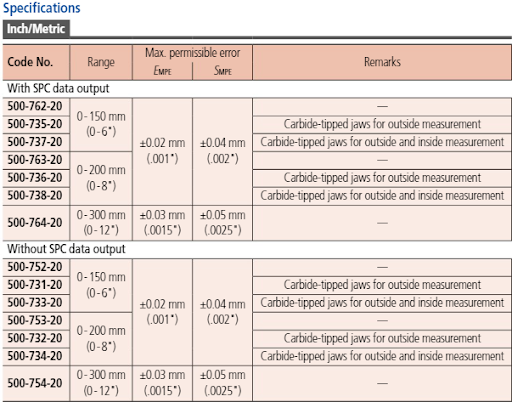

Max. Permissible Error E MPE:
±0,0015"
Max. Permissible Error S MPE:
±0,0025"
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
Delivered:
In a case, including 1 SR-44 battery
ORIGIN (ABS-Zero):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
345 g

No technical information is currently available.

No application information is currently available.
