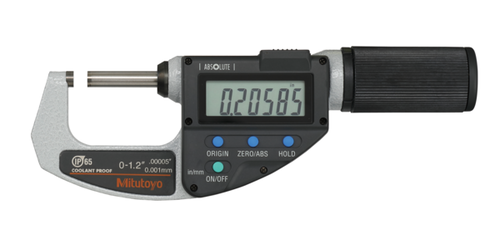

Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676-20

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676-20

Name: Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676-20
Brand: Mitutoyo
SKU: 293-676-20
Price: 369.0 GBP
Availability: InStock

MitutoyoSKU: 293-676-20

All prices exclude VAT, which will be added at checkout.

Price:

£369.00 £511.00

Quantity:

DescriptionThis Quickmike, with a non-rotating spindle, delivers much faster movement than standard models.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:

With 10 mm feed per thimble rotation, it delivers twenty times as fast as standard devices.
Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
ABSOLUTE linear scale means no restriction on adjustment speed.
Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	293-676-20
Measuring Ranges	0-30mm/0-1.2"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	0.0003mm/ 0.000012"
Parallelism	.002mm/.00008"
Manufacturer	Mitutoyo

Digital/Analog:	Digital
Delivered:	Including box, SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 1.2 "/0-30mm
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.0001"
Flatness:	0.000012"
Parallelism:	0.00008"
Data output:	Yes
Display:	LCD, character height 10 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6.35 mm, non-rotating, spindle feed 10 mm
Measuring force:	5 - 12 N
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years
Delivered:	including Box, gauge block (from 25 mm upward), 1 battery
ON/OFF:	Yes
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	275 g
