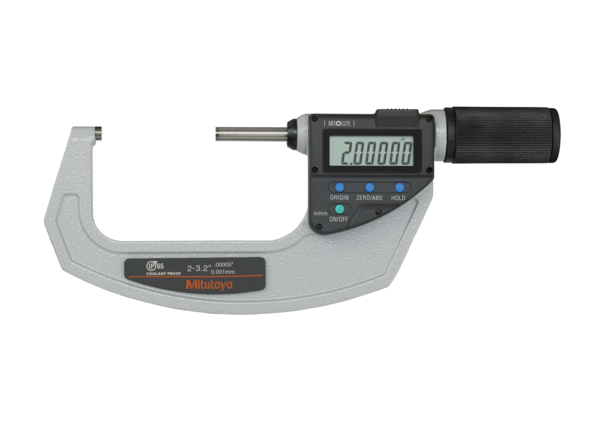

Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 50-80mm/2-3.2" 293-678

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 50-80mm/2-3.2" 293-678

Name: Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 50-80mm/2-3.2" 293-678
Brand: Mitutoyo
SKU: 293-678
Price: 390.0 GBP
Availability: InStock

MitutoyoSKU: 293-678

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£390.00 £534.00

Quantity:

All prices exclude VAT, which will be added at checkout.

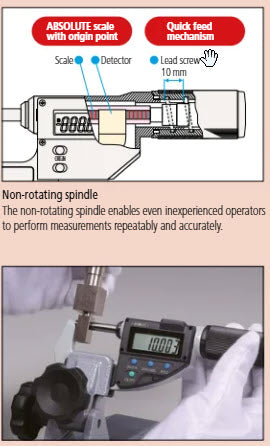

This Quickmike, with a non-rotating spindle, delivers much faster movement than standard models.

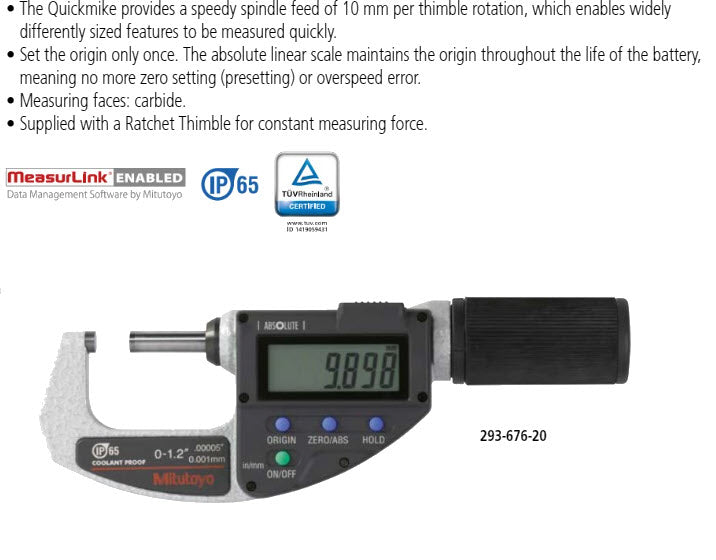

The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:

With 10 mm feed per thimble rotation, it delivers twenty times as fast as standard devices.
Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
ABSOLUTE linear scale means no restriction on adjustment speed.
Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.

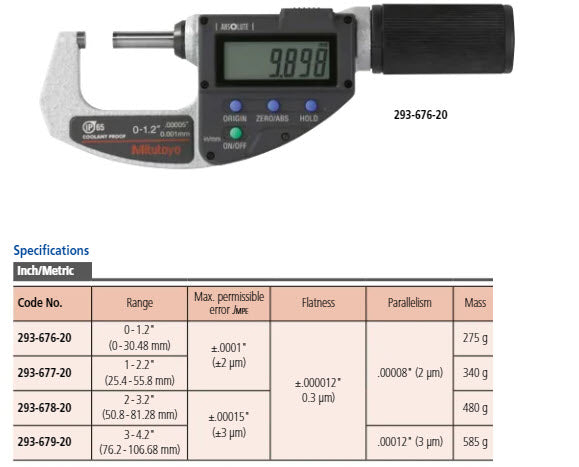

Product Information
Part Number	293-678
Measuring Ranges	50-80mm/2-3.2"
Resolution	.001mm/.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	IP65
Type	Standard
Constant Force Device	Ratchet Stop
Flatness	0.0003mm/ 0.000012"
Parallelism	.003mm/.00012"
Manufacturer	Mitutoyo

Digital/Analog:	Digital
Delivered:	Including box, SR44 battery, setting standard
Inch-Metric:	Inch/Metric
Range:	2 - 3.2 "/50-80mm
Digital step:	0.00005"/0.001 mm
Max. Permissible Error J MPE:	±0.00015"
Flatness:	0.000012"
Parallelism:	0.00004"
Data output:	Yes
Display:	LCD, character height 10 mm
Measuring face:	Carbide-tipped, micro-lap finish
Measuring spindle:	ø6.35 mm, non-rotating, spindle feed 10 mm
Measuring force:	5 - 12 N
Power supply:	1 battery SR-44
Battery life:	Approx. 5 years
ON/OFF:	Yes
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	525 g
