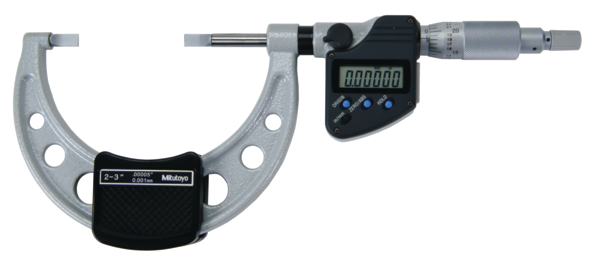

Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30
Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30
Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30
Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30
Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30
Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30

Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30

MitutoyoSKU: 422-332-30
List price: £967.00 Offer price: £706.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Add your Gauge ID, asset number or company name.

Mitutoyo; Digital Blade Micrometer

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:
  • Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
  • Non-rotating spindle
Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
2 - 3 "
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00015"
Parallelism:
0,00015"
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:
Type A, hardened steel t=0.75 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
465 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Blade Micrometer, Blade=0,75mm Inch/Metric, 2-3" 422-332-30 Click to open the PDF document
