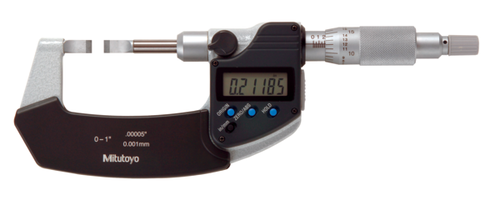

Mitutoyo Digital Blade Micrometer, Blade=0,75mm Carbide-Tipped, Inch/Metric, 0-1" 422-370-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Blade Micrometer, Blade=0,75mm Carbide-Tipped, Inch/Metric, 0-1" 422-370-30

Name: Mitutoyo Digital Blade Micrometer, Blade=0,75mm Carbide-Tipped, Inch/Metric, 0-1" 422-370-30
Brand: Mitutoyo
SKU: 422-370-30
Price: 710.0 GBP
Availability: InStock

MitutoyoSKU: 422-370-30

List price: £973.00 Offer price: £710.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£20.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Add UKAS calibration of setting standard Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

Overview Technical Information Applications Videos & Documents

Mitutoyo; Digital Blade Micrometer

This Digimatic Blade Micrometer is designed to help you measure hard-to-reach features. It offers the following benefits:

Blade-shaped anvil and spindle for measuring the groove diameter of shafts, keyways and other hard-to reach features
Non-rotating spindle

Specification

Digital/Analog:	Digital
Delivered:	Including box, spanner, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0 - 1 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,00015"
Parallelism:	0,00015"
Display:	LCD, character height 7.5 mm
Measuring face:	Carbide-tipped or hardened steel spindle and anvil
Anvil / Spindle:	Type C, carbide t=0.75 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
ORIGIN:	Yes
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
Mass:	365 g

Dimensions

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Blade Micrometer, Blade=0,75mm Carbide-Tipped, Inch/Metric, 0-1" 422-370-30 Click to open the PDF document
