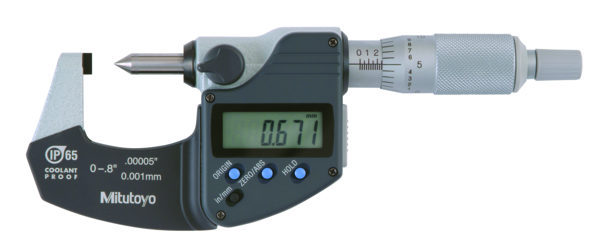

Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30
Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30
Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30
Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30

Mitutoyo Digital Crimp Height Micrometer IP65 Inch/Metric, 0-20.32mm/0-0.8" 342-371-30

MitutoyoSKU: 342-371-30
List price: £580.00 Offer price: £423.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

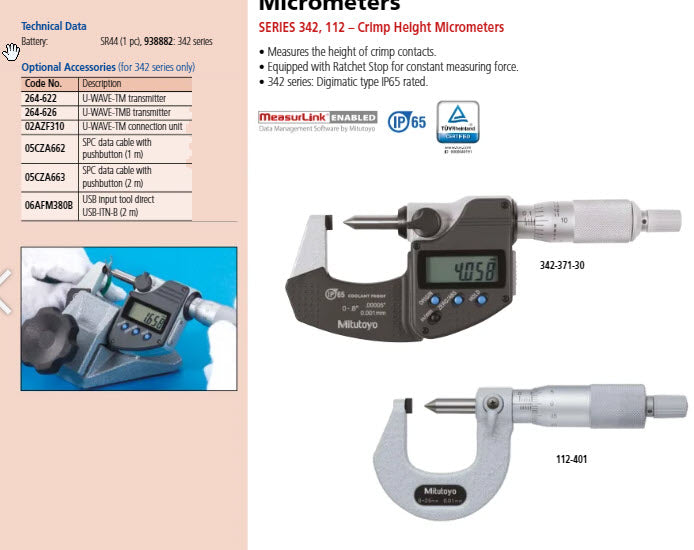

This Crimp Height Micrometer that features a flat anvil and pointed spindle offers you the following benefits:
  • It allows you to measure the crimped height of electrical contacts.
  • Excellent resistance against water and dust (IP65 protection level).

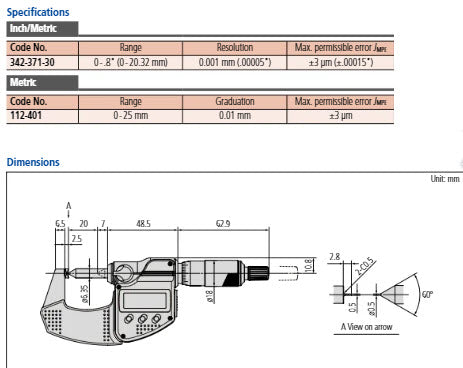

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
0 - 0.8 "
Graduation:
0.00005 in / 0.001 mm
Digital step:
0,0005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,00015"
Display:
LCD, character height 7.5 mm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
With spindle lock,
ø 6.35 mm, spindle pitch 0.5 mm (342-271-30, 112-401)
without spindle lock
ø 6.35 mm, spindle pitch (342-451-20) 10 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years (342-271-30),
5 years
(342-451-20)
Delivered:
Including box, 1 battery
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
275 g

No technical information is currently available.

No application information is currently available.
