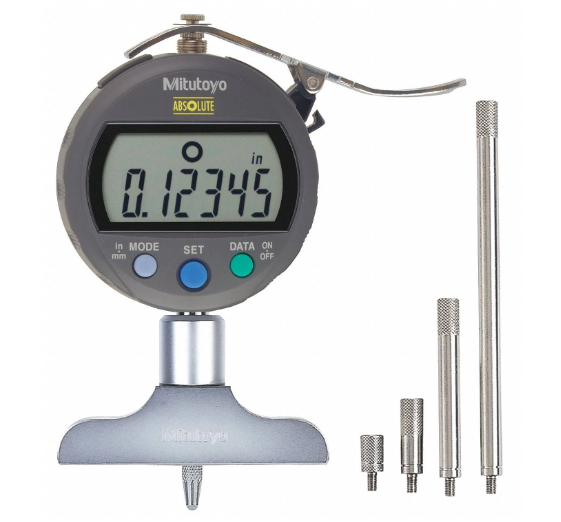

Mitutoyo ABSOLUTE Digimatic Depth Gage, 0-8”/0-200mm - 547-257S
| Range | 0 - 8” / 0-200mm |
| Accuracy | ± 0,0002" |
| Base flatness | 0.00008" |
| Base (WxT) | 2.5”x.63” |
| Resolution | .00005” / 0.001mm |
| Mass | 290 g |
| Stroke | .5” / 12.7 mm |
| Power supply | 1 battery SR-44 |
| Scale | Capacitance type ABSOLUTE linear encoder |
| Measuring force | ? 1.5 N |
| Alarm | Low voltage, counting value composition error, overflow error, tolerance limit setting error |
| Battery life | Approx. 7000 hours |

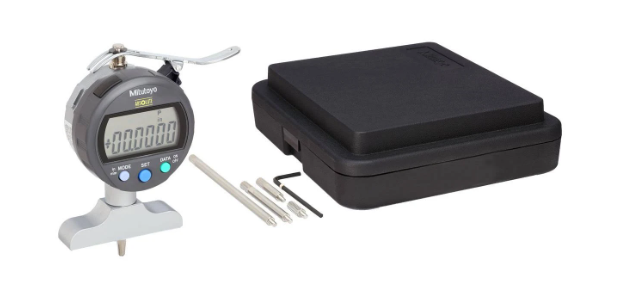

| Delivered | Including Box and extensions 10, 20, 30 (2 pcs.), 100 mm, contact point 21JAA224 |
| Contact point | Carbide ball |
| Lock function | Yes |
| PRESET | Yes |
| ZERO/ABS | Yes |
| DATA (output with cable) / HOLD (display value) | Yes |
| Digimatic data output | Yes |
| GO/±NG judgement | Yes |
| Counting direction switchable | Yes |
| Calculation function (with formula) | Yes |
| Digital/Analog | Digital |
| Inch-Metric | Inch/Metric |
