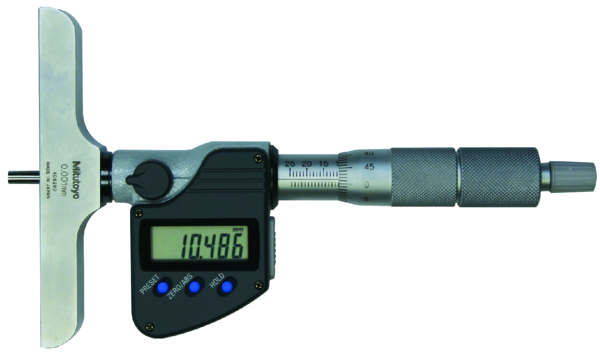

Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30

Name: Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30
Brand: Mitutoyo
SKU: 329-351-30
Price: 686.0 GBP
Availability: InStock

MitutoyoSKU: 329-351-30

All prices exclude VAT, which will be added at checkout.

Price:

£686.00 £971.00

Quantity:

This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:

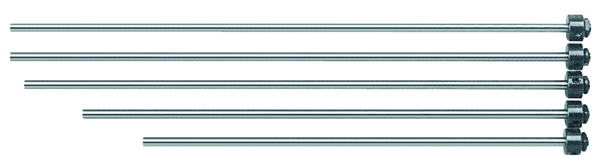

∅4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
The ratchet stop provides constant measuring force.
Measuring rod lock.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	0 - 12 "/0-300mm
Digital step:	0,0001"/0,001 mm
Measuring span:	25 mm
Spindle pitch:	0,5 mm
Zero point errors of rods:	±4 µm (0-150 mm) ±6 µm (0-300 mm)
Micrometer Head Feed (0-25 mm) (excluding quantizing error):	±3 µm
Flatness base:	2 µm
Flatness rod:	0,3 µm
Parallelism base/rod:	(4+L/50) µm L = max. measuring length (mm)
Measuring face:	Hardened, precision ground, micro-lap finish
Base:	Hardened tool steel
Scale:	Thimble and sleeve satin chrome finish, ∅18 mm
DATA (output with cable) / HOLD (display value):	Yes
Lock function:	Yes
Auto Power OFF after 20 min. non use:	Yes
2 x PRESET:	Yes
Low voltage alarm:	Yes
Base (W x T):	4 x 0.63"

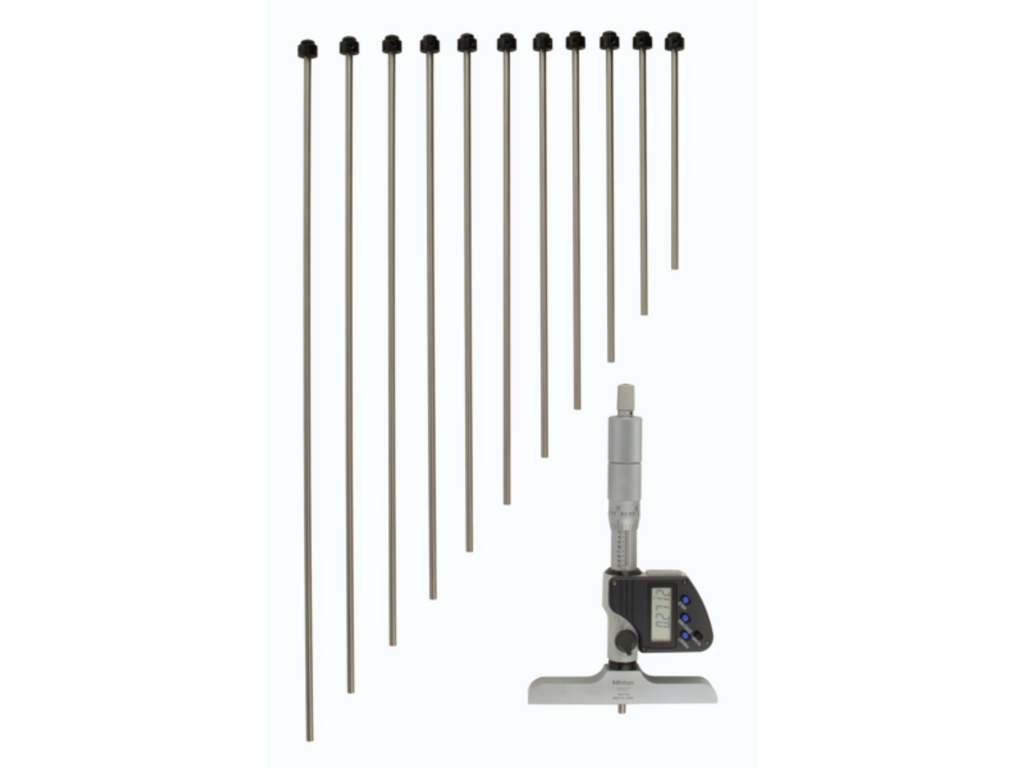

Number of rods:	12
Data output:	Yes
Power supply:	1.0 battery SR-44.0
Measuring force:	5-10 N
ABS / INC (INC ZERO):	Yes
Battery life:	Approx. 2,4 years
Delivered:	Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863, 1 SR44 battery
Mass:	790 g
Delivered:	Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863, 1 SR-44 battery

Product Information
Part Number	329-351-30
Measuring Range	0-300mm/0-12"
Resolution	.001mm/.0001"
Unit of Measurement	Metric Inch
Display Type	Digital
Items Per Set	12
Data Output	Yes
Type	Depth Micrometer
Flatness	Base 2µm/.000080", Rods .0003mm/.000012"
Parallelism	Paralelism between reference face & measuring face 0-150mm/0-6"±7µm 0-300m /0-12" is ±10µm
Calibration Code	CAL10 B4
Product Description	Digital Depth Micrometer
Resolution/Capacity	.001mm/.0001"
