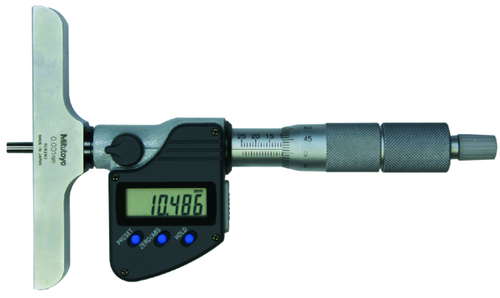

Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30
Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30
Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30
Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30
Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30

Mitutoyo Digital Depth Micrometer 0-300mm (0-12") 4" Base 329-351-30

MitutoyoSKU: 329-351-30
List price: £1,010.00 Offer price: £737.00 Excluding VAT
This interchangeable rod type micrometer can be used for wide range measurements.
It offers you the following benefits:
  • ?4 mm interchangeable rods, with lapped measuring surfaces, enable you to make wide-range measurement.
  • The ratchet stop provides constant measuring force.
  • Measuring rod lock.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
0 - 12 "/0-300mm
Digital step:
0,0001"/0,001 mm
Measuring span:
25 mm
Spindle pitch:
0,5 mm
Zero point errors of rods:
±4 µm (0-150 mm)
±6 µm (0-300 mm)
Micrometer Head Feed (0-25 mm) (excluding quantizing error):
±3 µm
Flatness base:
2 µm
Flatness rod:
0,3 µm
Parallelism base/rod:
(4+L/50) µm
L = max. measuring length (mm)
Measuring face:
Hardened, precision ground, micro-lap finish
Base:
Hardened tool steel
Scale:
Thimble and sleeve satin chrome finish, ?18 mm
DATA (output with cable) / HOLD (display value):
Yes
Lock function:
Yes
Auto Power OFF after 20 min. non use:
Yes
2 x PRESET:
Yes
Low voltage alarm:
Yes
Base (W x T):
4 x 0.63"
Number of rods:
12
Data output:
Yes
Power supply:
1.0 battery SR-44.0
Measuring force:
5-10 N
ABS / INC (INC ZERO):
Yes
Battery life:
Approx. 2,4 years
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863, 1 SR44 battery
Mass:
790 g
Delivered:
Including box, spanner no. 301336, 04GAA274, hex-spanner no. 202863, 1 SR-44 battery

No technical information is currently available.

No application information is currently available.
