MitutoyoSKU: 369-351-30
List price: £881.00 Offer price: £643.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£18.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
This Digimatic Disc Micrometer allows you to measure a range of different materials.
It offers you the following benefits:
  • Non-rotating spindle and disc-shaped measuring surfaces.

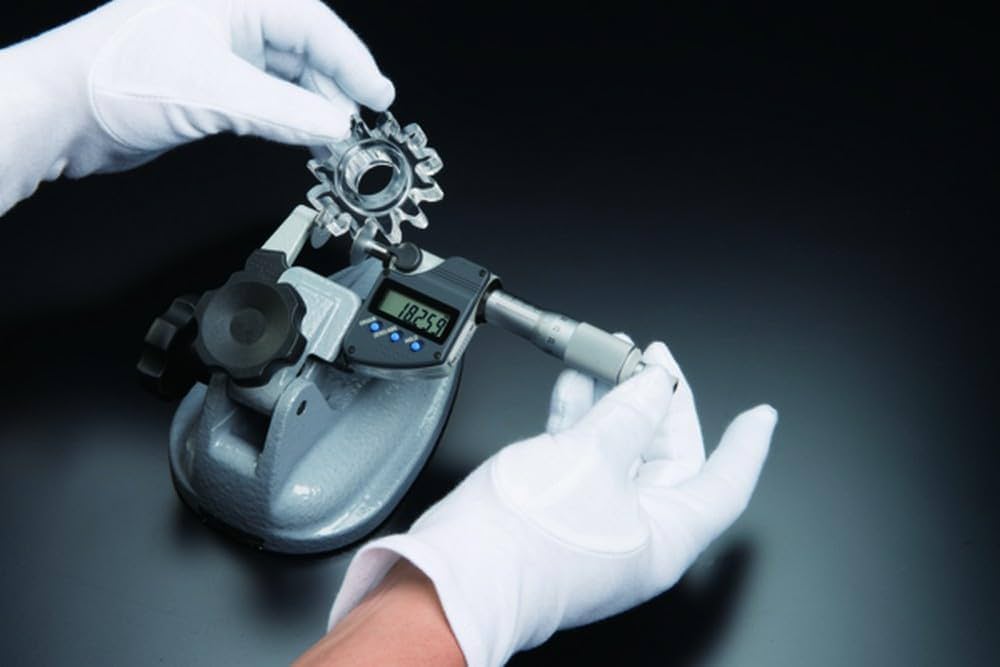

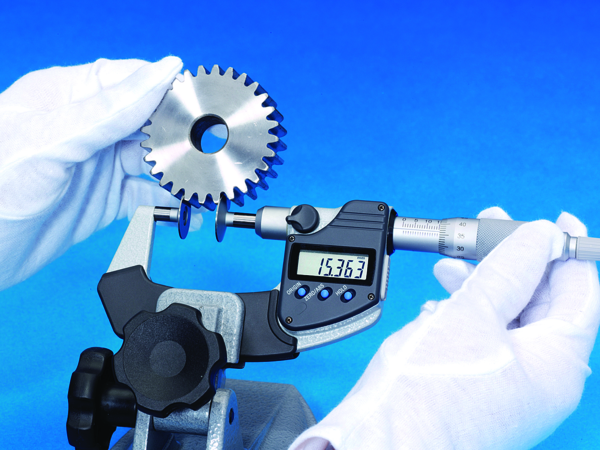

  • Measuring the root tangent length of spur and helical gears
  • Measurable range of gear pitch: 0,5-6 module
  • Suitable for measuring felt, rubber, cardboard, fabric etc.

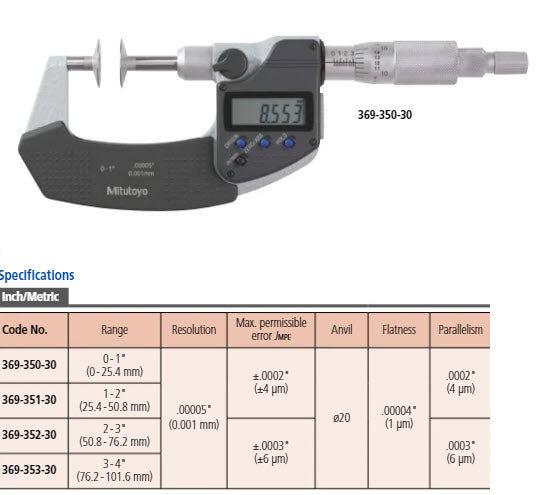

Specification
Digital/Analog:
Digital
Delivered:

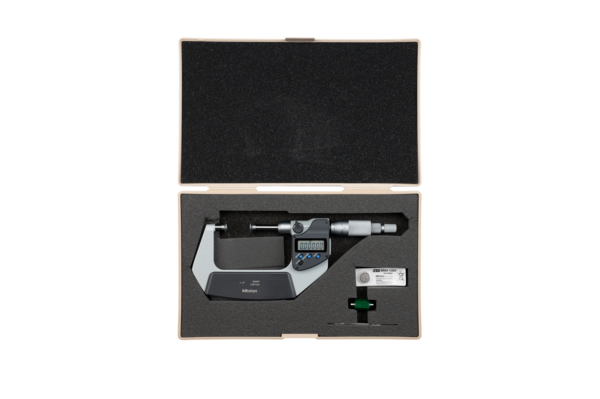

Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
1 - 2 "/25-50mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0002"/.005mm
Parallelism:
0,0002"/.005mm
Display:
LCD, character height 7.5 mm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Measurable module:
0.5 - 6 mm
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Digital Disc Micrometer Inch/Metric, 1-2", Non-Rotating Spindle, Disk=20mm 369-351-30 Flat Anvils no Central Recess Click to open the PDF document
